HOGI CNC 4 roller plate rolling machine Automatic production line Welding machine production Line
HOGI Industrial Fan HVAC Tank Ducts Cylinder Chimneys Complete Sets of Rolling Welding Equipment
- Complete production line: uncoiler → leveling → laser cutting → 4-roller rolling → discharge → vertical straight seam welding
- Touch screen CNC control with real-time monitoring — programmable rounding parameters, start/stop/emergency stop
- Replaces manual cutting, rolling, and welding — simple operation, high efficiency, 200 seconds per cylinder (Ø600×1250mm×1.5mm)
- Rolling accuracy: roundness error ±10mm, end misalignment ±1mm — consistent cylinder quality
- Process stainless steel and carbon steel — diameter 300-1500mm, length 400-1500mm, thickness 1-3mm
HOGI Automatic Rolling-Welding Production Line — Complete Cylinder Manufacturing Solution

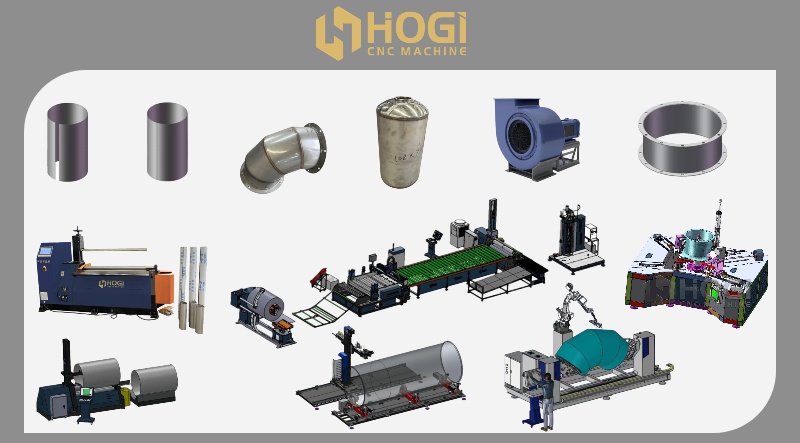

HOGI manufactures complete sets of automatic rolling and welding equipment for industrial fans, HVAC systems, tank ducts, cylinders, and chimneys. Our product series include hydraulic 2-roll rolling machines, CNC 4-roller plate rolling machines, lift-type straight seam welding machines, shrimp elbow automatic welding machines, small diameter rolled round automatic production lines, duct automatic round rolling production lines, fan outer cylinder roll round welding production lines, fan impeller robot automatic welding machines, stainless steel duct flange automatic welding machines, robot duct flange laser welding machines, robot automatic welding machines, and automatic flanging punching machines.
HOGI develops, designs, manufactures, and sells intelligent welding, cutting, and rolling equipment for ventilation and environmental protection engineering, fire protection, heating, cooling, and ventilation fan industries worldwide. From individual machines to fully automated production lines, we deliver solutions that replace manual operations with simple, easy-to-use, high-efficiency automation.
Main Machine Gallery
Details Gallery
Why Choose HOGI Rolling-Welding Production Lines
Complete Turnkey Solution: From uncoiler to finished cylinder — hydraulic material frame, leveling machine, laser cutting, conveying platform, hydraulic 4-roller rolling machine, discharging platform, and vertical straight seam welding. One supplier, one solution, one responsibility.
Touch Screen CNC Control: Real-time monitoring of the entire operation process. Programmable rounding parameters via touch screen interface. Simple start, stop, and emergency stop controls — easy operation, minimal training required.
High Production Efficiency: For a Ø600mm × 1250mm × 1.5mm cylinder: leveling 30s → laser cutting 20s → rolling 50s → welding 90s → discharge 30s = 200 seconds per cylinder. Replaces manual cutting, rolling, and welding completely.
Precision Rolling & Welding: Rolling accuracy: roundness error ±10mm, end misalignment ±1mm. MIG welding with argon shielding produces solid, uniform weld seams with no burn-through — impact resistant and crack-free.
Wide Material & Size Range: Process stainless steel and carbon steel. Diameter 300-1500mm, length 400-1500mm, wall thickness 1-3mm (customizable). Workpiece weight under 0.5 tons.
Case Studies
Customer Testimonials
“The integrated line from uncoiler to welding changed our business. We used to have separate rolling and welding stations with 5 operators. Now one person runs the whole line.” — Production Director, HVAC Components
“The rounding accuracy is outstanding. We roll 1500mm diameter stainless steel chimneys with ±5mm roundness — perfect fit every time for field installation.” — Plant Manager, Chimney Fabricator
“Touch screen programming made setup so easy. We change between diameter 400mm and 1200mm in under 5 minutes. No skilled rolling experience needed.” — Workshop Owner, Metal Fabrication Shop
Frequently Asked Questions
What components are included in the complete rolling-welding production line?
What materials and thicknesses can be processed?
What is the production cycle time?
What rolling and welding accuracy can be achieved?
Can the line be customized for different products?
Why Choose HOGI Rolling-Welding Solutions
HOGI has been manufacturing intelligent welding, cutting, and rolling equipment for ventilation and environmental protection engineering, fire protection, heating, cooling, and ventilation fan industries for over a decade. Our complete rolling-welding production lines replace manual cutting, rolling, and welding with fully automated processes — simple to operate, easy to use, and highly efficient.
The 4-roller rolling machine features shafts made of 42CrMo with medium frequency surface treatment, heat treated to HRC54-56, and hard chrome plated to 0.8 surface finish. Hydraulic drive provides rotary force, while cylinders control clamping and side roller movement with hydraulic balance and electrical control systems for perfect synchronization. Auto beam pickup prevents winding overlap, and automatic discharge pushes finished products to a liftable receiving platform.
From stainless steel ventilation ducts to carbon steel chimneys, from fan housings to tank cylinders — HOGI delivers complete solutions backed by comprehensive technical support, installation, and training.
Technical Support & Services
Complete production line design, installation, and commissioning — from uncoiler to finished cylinder.
Hands-on training for touch screen programming, line operation, and routine maintenance.
42CrMo rollers with hard chrome plating — resurfacing and replacement services available.
MIG/TIG/laser welding parameter optimization and consumables supply.
Comprehensive warranty on CNC controls, hydraulic system, welding equipment, and structural components.
Request a Quote
HOGI Complete Rolling-Welding Production Line Manufacturer — This specification page covers technical parameters of our automatic rolling-welding production line, including line components, workflow, precision tolerances, and production efficiency for stainless steel and carbon steel cylinders.
Complete Production Line Components
The CNC rolling round production line consists of: hydraulic material frame (uncoiler), leveling machine, laser cutting station, conveying platform, hydraulic 4-roller rolling machine, discharging platform, and vertical straight seam welding machine. This integrated line replaces manual cutting, rolling, and welding operations — simple to operate, easy to use, and high production efficiency.
Main Technical Parameters
| Overall Weight | 19T |
| Overall Dimensions (L×W×H) | 19000 × 10100 × 3000 mm |
| Workpiece Material | Stainless Steel / Carbon Steel |
| Welding Requirements | MIG Welding |
| Workpiece Size | Diameter: 300-1500mm |
| Length: 400-1500mm | |
| Wall Thickness: 1-3mm (customizable by plate thickness) | |
| Weight: M < 0.5T | |
| Weld Form | Cylinder Straight Seam (customizable) |
| Rolling Accuracy | Roundness error within ±10mm |
| End Misalignment | Misalignment error within ±1mm |
| Welding Quality | Solid, uniform weld seam, no burn-through, impact resistant, no cracking |
| Production Efficiency | Diameter 600mm × Height 1250mm × Thickness 1.5mm: 200 seconds/pc |
| Work Environment | Temperature range: -10～50℃ |
| Relative humidity: ≤75% (long-term), 90% (short-term, no condensation) | |
| Electricity network fluctuation: ±10% | |
| Altitude: below 1000m |
Workflow & Cycle Time Breakdown
| Step | Process | Time (for Ø600mm cylinder) |
| 1 | Leveling | 30 seconds |
| 2 | Laser Cutting | 20 seconds |
| 3 | Rolling (4-roller) | 50 seconds |
| 4 | In-feed Welding | 90 seconds |
| 5 | Out-feed | 30 seconds |
| Total Cycle Time | 200 seconds per cylinder | |

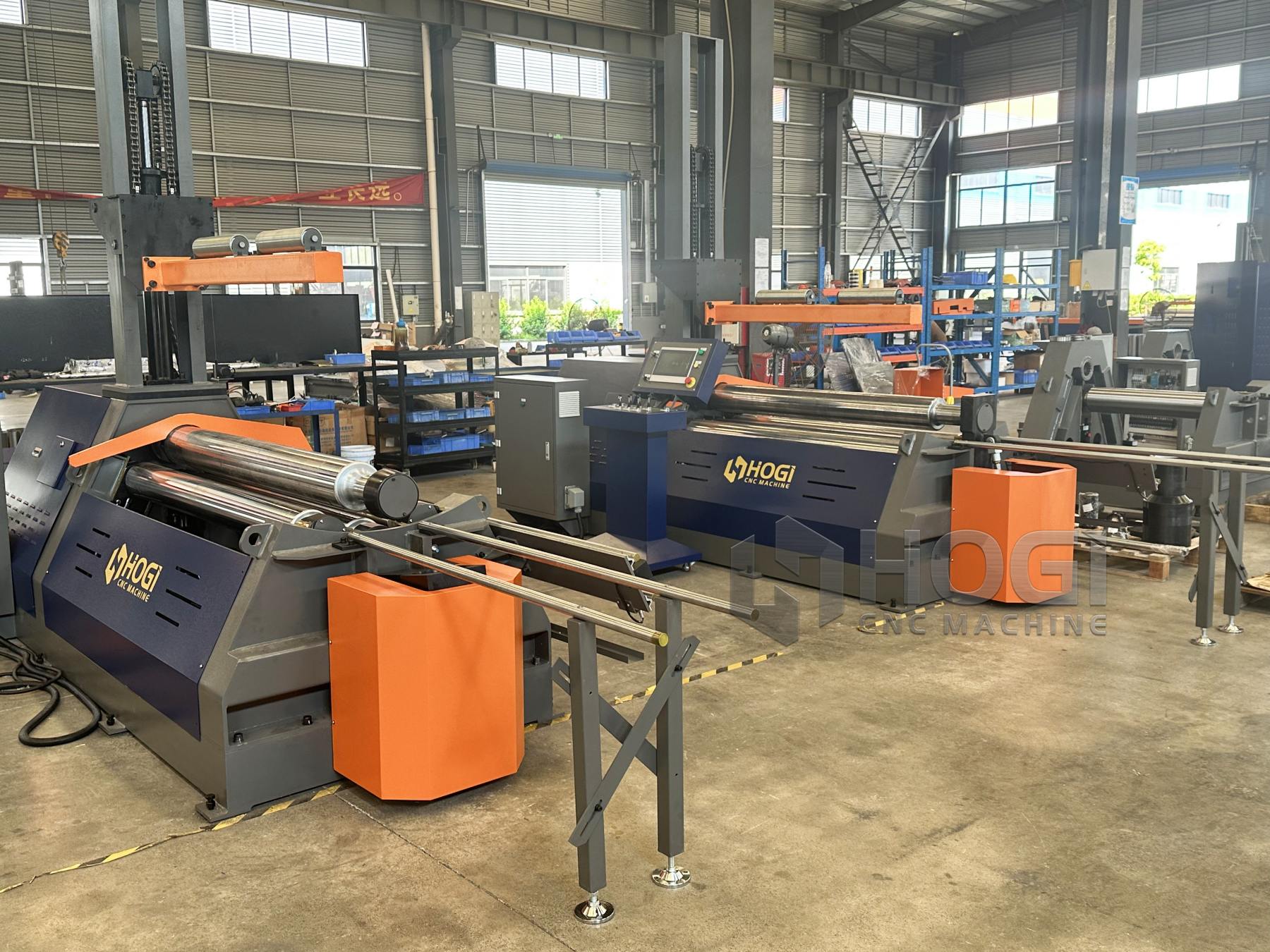

Hydraulic CNC 4-Roller Rolling Machine — Technical Specifications
The rolling machine is composed of an upper shaft, lower shaft, and side shafts. Shaft material is 42CrMo with medium frequency surface treatment, heat treated to HRC54-56 hardness, and hard chrome plated after finishing to ensure surface finish of 0.8. The machine is driven by a hydraulic drive unit. Clamping and side roller lifting/lowering are controlled by cylinders (two cylinders per axis), with synchronization achieved through the hydraulic balance system and electrical control system.
Additional Functions: Beam pickup function prevents winding overlap when rolling different size cylinders. Automatic discharging pushes finished rolled products to a liftable receiving platform.
Welding Process Specifications
| Welding Method | Argon arc welding (TIG) horizontal welding process — beautifully shaped welds |
| Protective Gas | 100% Argon (Ar) |
| Weld Cleaning | Clean oil, burrs, and impurities within 20mm from both sides of the weld |
Equipment Overview — Fan HVAC Complete Welding Equipment
HOGI provides complete sets of welding equipment for fan HVAC systems, angle steel flange automatic welding, electromechanical pipeline welding equipment, and duct coil rolling welding automatic production lines. The equipment monitors operation processes in real time, with numerous rounding process parameters programmable via the touch screen interface. The operation platform includes buttons for start, stop, and emergency stop.
HOGI Complete Rolling-Welding Production Line — From Coil to Finished Cylinder
Live Demonstration Highlights
Watch our complete automatic rolling-welding production line in action — from uncoiling to finished cylinder. This video showcases the entire process for manufacturing stainless steel and carbon steel ducts, fan housings, chimneys, and tank cylinders.
- Complete Line Walkthrough: See the integrated workflow: hydraulic uncoiler → leveling machine → laser cutting → 4-roller rolling → discharge platform → vertical straight seam welding. One continuous automated process replacing manual cutting, rolling, and welding.
- CNC 4-Roller Rolling Precision: Watch the 42CrMo rollers (HRC54-56, hard chrome plated) forming cylinders with ±10mm roundness accuracy. Hydraulic drive with cylinder synchronization ensures perfect rolling every time.
- Straight Seam Welding Automation: Live demonstration of MIG welding with argon shielding producing solid, uniform weld seams. No burn-through, impact resistant, and crack-free results — consistent quality cylinder after cylinder.
- Touch Screen Real-Time Control: See the operator interface with programmable rounding parameters, start/stop/emergency stop controls, and real-time production monitoring — simple operation, minimal training required.
Engineered for High-Volume Cylinder Production
As demonstrated in the video, HOGI rolling-welding production lines are optimized for manufacturers of ventilation ducts, industrial fan housings, chimneys, storage tanks, and pressure vessels. The integrated line delivers 200 seconds per cylinder (Ø600×1250mm×1.5mm), replacing 5-8 manual operators with a single line supervisor. Process stainless steel and carbon steel — diameter 300-1500mm, length 400-1500mm, thickness 1-3mm customizable. HOGI provides complete installation, operator training, spare parts, and 2-year warranty for the entire line.
