HOGI Mini press brake
HOGI Hydraulic Mini NC CNC Press Brake Bending machines
Hydraulic small mini NC/CNC plate bending machine Servo motor press brake machine 30TON 40TON 50TPN 63TON 70TON 80TON Length 1200mm 1600mm 2000mm 2200mm 2500mm Customizable.
NC Type: 2Axis 3Axis 2+1Axis 3+1Axis
CNC Type: 4Axis 6Axis 8Axis 4+1Axis 6+1Axis 8+1Axis
HOGI Hydraulic Mini NC CNC Press Brake Bending Machine
HOGI small press brake bending machines combine compact footprint with versatile drive options, making them the ideal choice for workshops with limited space, diverse order requirements, and mixed production volumes. Available in both hydraulic NC and servo-electric CNC configurations, HOGI mini press brakes cover tonnage from 30 to 100 tons to suit a wide range of sheet metal bending applications including home appliance enclosures, distribution cabinet doors, telecommunications cabinets, architectural decoration profiles, and small mechanical components.
- Two drive types available: Hydraulic NC for robust high-tonnage bending, and Servo-electric CNC for high-precision small-batch production
- Compact design with low energy consumption — ideal for limited-space workshops and small-to-medium volume production
- Servo-electric CNC version achieves repeatability up to ±0.0004 inches, suitable for precision sheet metal parts
- Hydraulic NC version offers wide tonnage range (30–100T) and handles thicker or longer sheets with stable hydraulic force
- Compatible with laser cutters and shears to form a complete small-scale sheet metal processing unit
- Quick multi-angle bending capability for custom enclosures, metal furniture, and varied order types
- Optional CNC controllers including Delem DA66T for advanced programming and production efficiency
Main Machine Gallery
Details Gallery

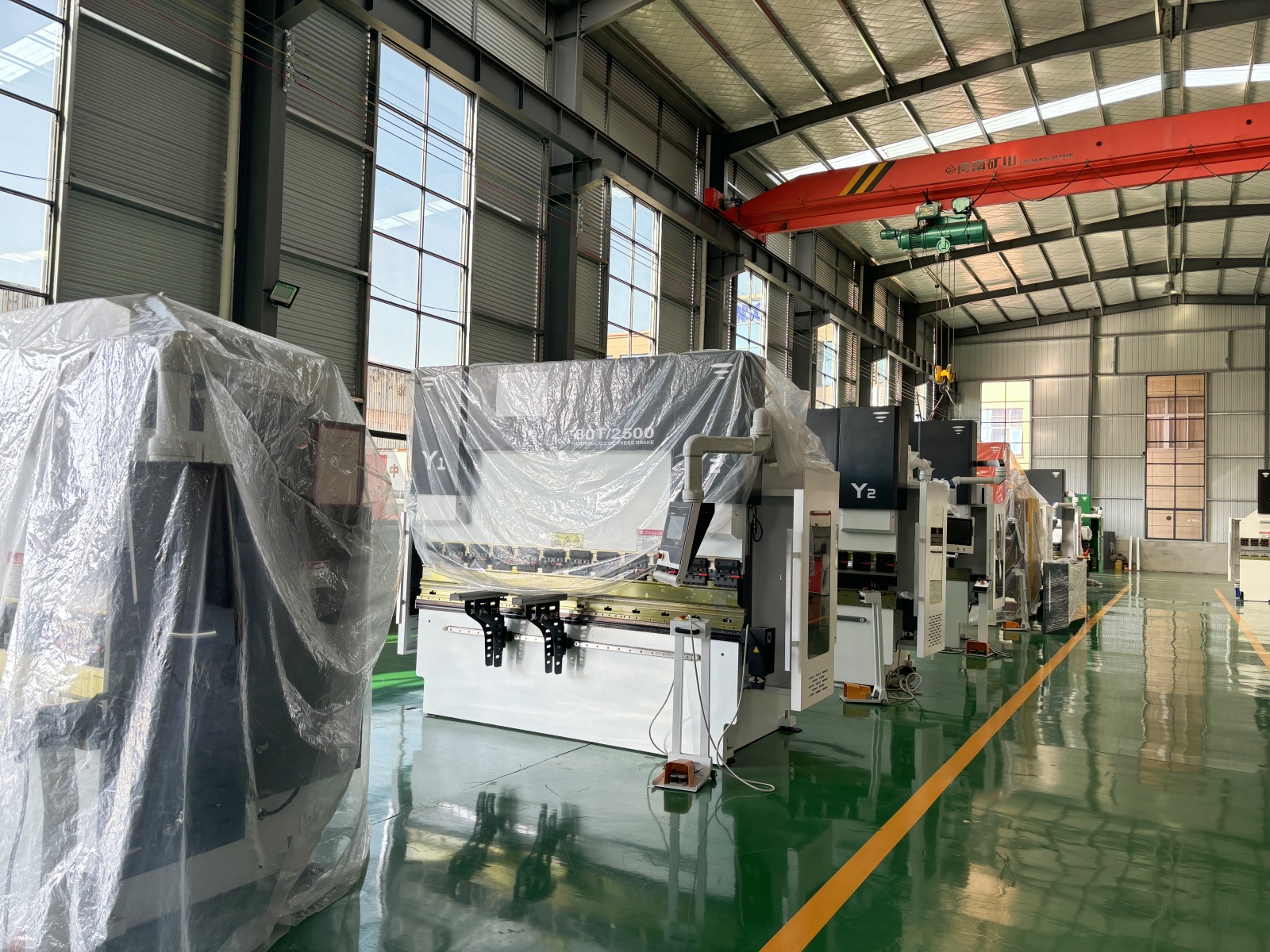

Packaging & Delivery
HOGI Mini Press Brake — Technical Advantages
Two Drive Technologies for Every Application: HOGI hydraulic NC mini press brakes deliver strong and consistent pressing force for thicker sheets and longer workpieces. HOGI servo-electric CNC mini press brakes use servo motor drive to achieve ±0.0004 inch repeatability, ideal for precision electronics casings, instrument panels, and medical device components requiring tight tolerances.
Compact Footprint, Maximum Flexibility: Designed specifically for workshops with limited floor space, HOGI mini press brakes integrate easily into existing production lines alongside laser cutters and shears. Their small size does not compromise capability — full multi-angle bending and back gauge control are standard.
Advanced CNC Controller Options: Optional Delem DA66T and other CNC controllers enable quick angle programming, back gauge positioning, and multi-step bending sequences. The pump-controlled servo CNC version further combines hydraulic stability with servo precision for demanding production environments.
Versatile Tooling System: Compatible with a wide range of upper and lower die profiles to handle diverse bending requirements — from standard 90° folds to hemming, Z-bends, and custom profiles for telecommunications cabinets, distribution boards, and architectural metal components.
Low Operating Cost: The servo-electric CNC version eliminates hydraulic oil changes and reduces energy consumption significantly versus traditional hydraulic machines. Both versions are designed for straightforward maintenance, keeping downtime and running costs low for small and medium workshops.
Case Studies
Customer Testimonials
Frequently Asked Questions
What is the difference between the hydraulic NC and servo-electric CNC mini press brake?
What CNC controllers are available?
What materials can the mini press brake process?
Can the machine be integrated with a laser cutter or shear?
Is the servo-electric CNC version suitable for cleanroom or food-related environments?
What tooling options are available?
Why Choose HOGI Mini Press Brakes
HOGI mini press brake series was developed to address the real-world needs of small and medium workshops — where space is limited, orders are varied, and both hydraulic reliability and servo precision are needed in the same product line. By offering both hydraulic NC and servo-electric CNC configurations in a compact footprint, HOGI delivers a complete mini bending solution without forcing a compromise between capability and workshop practicality.
Whether you are producing custom enclosures, distribution cabinet doors, metal furniture, architectural profiles, or telecommunications components, HOGI mini press brakes provide the multi-angle bending accuracy, tooling versatility, and ease of operation that modern small-scale sheet metal fabrication demands.
Each machine is built to strict quality standards with high-end components and backed by HOGI’s comprehensive after-sales support, ensuring long-term reliability and low total cost of ownership for your workshop.
Technical Support and Comprehensive After-Sales Service
Our after-sales team includes experienced engineers specialized in both hydraulic NC and servo-electric CNC press brake systems, ready to diagnose and resolve issues efficiently.
Upon receiving a service request, our team responds promptly and provides remote assistance via video or dispatches engineers for on-site support based on the nature of the fault.
We guarantee the supply of genuine manufacturer parts for all hydraulic, servo, and CNC components, ensuring repair quality and extending machine service life.
We provide comprehensive training covering machine operation, CNC programming, tooling setup, and routine maintenance to ensure your operators get the most from the equipment.
We offer hardware and software upgrade options — including controller upgrades and back gauge system enhancements — tailored to your evolving production requirements.
Request a Quote
HOGI Hydraulic & All-Electric Mini CNC Press Brake Bending Machine Manufacturer — This specification page covers both the hydraulic NC series and the all-electric servo series of HOGI mini press brakes, providing technical parameters, model ranges, drive principles, and key technical highlights for engineering evaluation and machine selection.

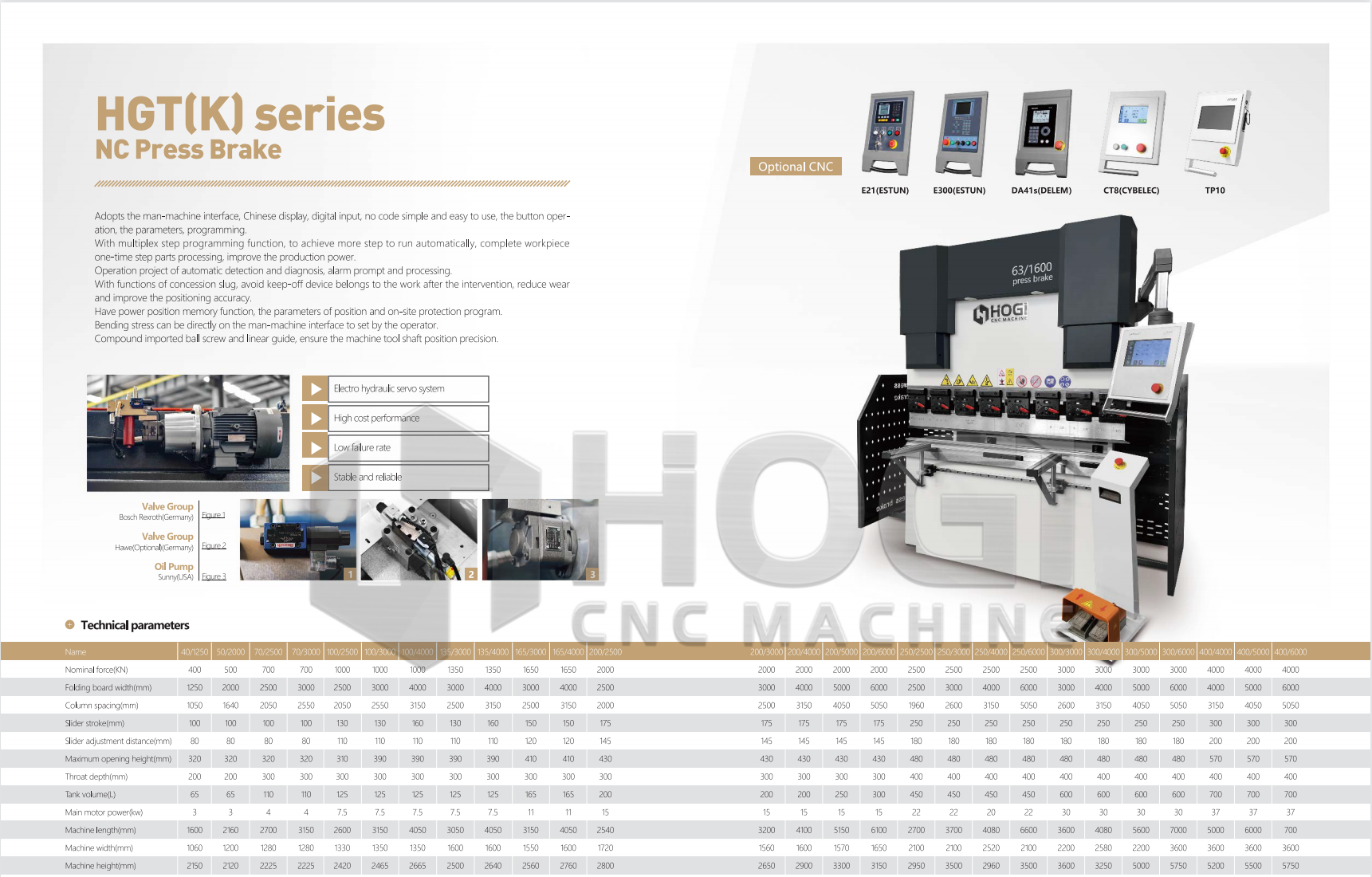

Hydraulic NC Series — Model Range

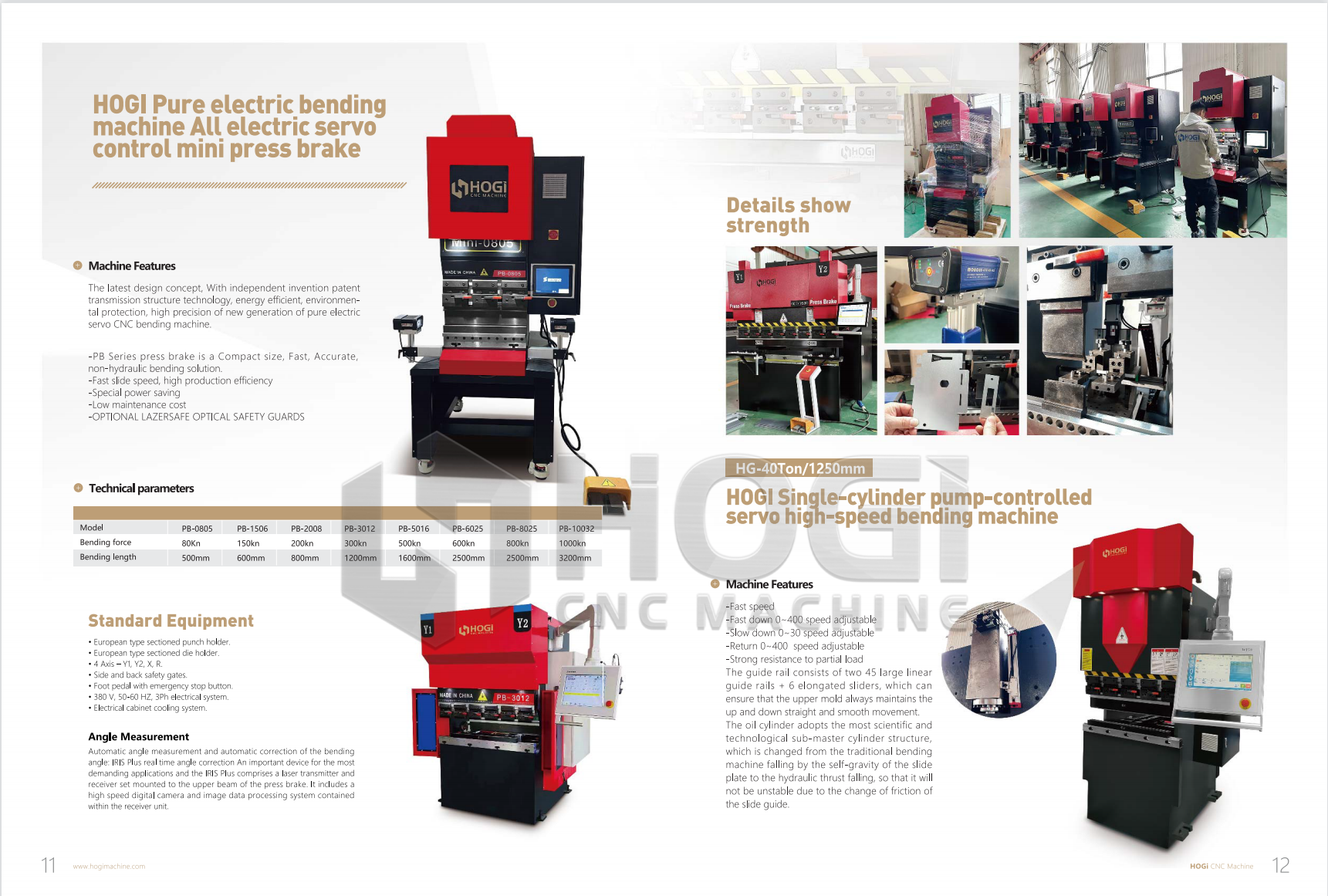

All-Electric Servo Series — Model Range
Technical Specifications Comparison
Hydraulic NC Series
| Tonnage range: | 30T – 100T |
| Bending length: | 1600mm – 4000mm |
| Slider positioning accuracy: | ±0.02 mm |
| Repeat positioning accuracy: | ±0.02 mm |
| Back gauge X-axis accuracy: | ±0.05 mm |
| Drive system: | Hydraulic power unit |
| Controller options: | Delem DA52s / DA66T / ESTUN |
All-Electric Servo Series
| Slider positioning accuracy Y1,Y2: | ±0.01 mm |
| Repeat positioning accuracy Y1,Y2: | ±0.01 mm |
| Angular tolerance of bending workpiece: | ±20’/full length |
| Bending workpiece straightness tolerance: | 0.20mm/1000mm |
| Repeat positioning accuracy X-axis backstop: | ≤±0.01mm |
| Repeat positioning accuracy R-axis backstop: | ≤±0.02mm |
| Drive system: | All-electric servo motor + ball screw |
| Power consumption (idle): | < 0.5 kW |
Technical Principles
Hydraulic NC Series: HOGI hydraulic mini press brakes utilize a hydraulic power unit to drive the cylinder, generating stable and powerful pressing force. The NC control system manages the stroke depth and back gauge position, offering reliable bending performance for thicker sheets and longer workpieces. This proven technology delivers consistent force output across the entire bending cycle, making it ideal for general fabrication workshops.
All-Electric Servo Series: HOGI all-electric press brakes use servo motors to directly drive ball screws or rack-and-pinion systems, precisely controlling the ram’s movement via electrical signals. Relying entirely on electrical power, they eliminate the need for hydraulic oil or a hydraulic power unit, resulting in a simplified structure. The CNC system enables programmable settings for bending angle, speed, and pressure parameters, achieving high dynamic response and exceptional repeatability.
Technical Highlights
1. Ultra-High Positioning Precision: The all-electric servo version achieves Y1/Y2 positioning accuracy of ±0.01 mm with repeatability of ±0.01 mm. The X-axis backstop repeatability reaches ≤±0.01mm, making it suitable for precision sheet metal components in electronics, medical devices, and aerospace applications where micron-level consistency is required.
2. Energy Efficiency Breakthrough: All-electric servo press brakes consume only 25% of the energy of traditional electro-hydraulic CNC bending machines. Idle power consumption is less than 0.5kW, and the system automatically adjusts power output according to working conditions — similar to inverter air conditioners — achieving up to 75% energy savings.
3. High-Speed Bending Cycle: Fast and slow speed conversion and lower dead center positioning are controlled directly by servo motors and ball screws. The entire cycle time is significantly faster than hydraulic control, increasing production efficiency by nearly 2 times without thermal effects from rising oil temperature.
4. Simplified Maintenance Structure: The all-electric design eliminates hydraulic components such as oil pumps, valves, hoses, and seals. Routine maintenance requires only guide rail lubrication and electrical connection inspection. This results in substantially lower maintenance costs and reduced machine downtime compared to hydraulic systems.
HOGI Mini CNC Press Brake — Hydraulic & All-Electric Series In Action
Live Demonstration Highlights
Watch HOGI mini press brake bending machines in action — featuring both the Hydraulic NC series (30T–100T) and the All-Electric Servo series (PB-0805 to PB-10032). This video demonstrates the versatility, precision, and efficiency of HOGI’s compact bending solutions, showcasing real-world applications including home appliance enclosures, telecommunications cabinets, architectural metal components, and precision electronic casings.
- Hydraulic NC Series — Robust Bending Power: Watch the 63-ton hydraulic press brake processing 3mm mild steel sheets with consistent force and stable back gauge positioning. The Delem DA66T controller’s multi-step programming capability is demonstrated for complex bending sequences.
- All-Electric Servo Series — ±0.01mm Precision: See the PB-3012 all-electric press brake achieving ultra-high precision on stainless steel parts. The servo-driven ball screw system delivers ±0.01mm repeatability with angular tolerance of ±20’/full length — ideal for medical device and electronics components.
- 75% Energy Savings vs. Traditional Hydraulics: Live power consumption comparison shows the all-electric servo version operating at less than 0.5kW idle power, automatically adjusting output based on load conditions — similar to inverter technology in air conditioners.
- Oil-Free Clean Operation: Experience the complete absence of hydraulic oil in the servo-electric series, eliminating contamination risks. This makes the machine suitable for cleanroom environments, food machinery, medical equipment, and pharmaceutical manufacturing facilities.
- 2X Faster Bending Cycle: Visual comparison of cycle times demonstrates how the servo-electric series achieves nearly double the efficiency of hydraulic machines, with faster approach, bending, and return speeds — no thermal effects or oil temperature stabilization delays.
- Compact Footprint Integration: The video shows how HOGI mini press brakes integrate seamlessly with laser cutters and shears, forming a complete small-scale sheet metal processing unit for workshops with limited floor space.
Engineered for Precision Manufacturing & Small-Batch Flexibility
As demonstrated in the video, HOGI mini press brakes are optimized for small-to-medium volume production where order variety is high and space is limited. The Hydraulic NC series provides robust bending force for thicker materials and longer workpieces (up to 4000mm bending length), while the All-Electric Servo series delivers micron-level precision for high-value components in 3C electronics, aerospace, medical devices, and optical instruments. Both series feature intuitive CNC controllers (Delem DA66T / SYNTEC options), enabling quick changeovers between product variants and reducing setup time dramatically. For workshops transitioning from manual bending or expanding their CNC capabilities, HOGI mini press brakes offer the perfect balance of performance, footprint, and total cost of ownership.
