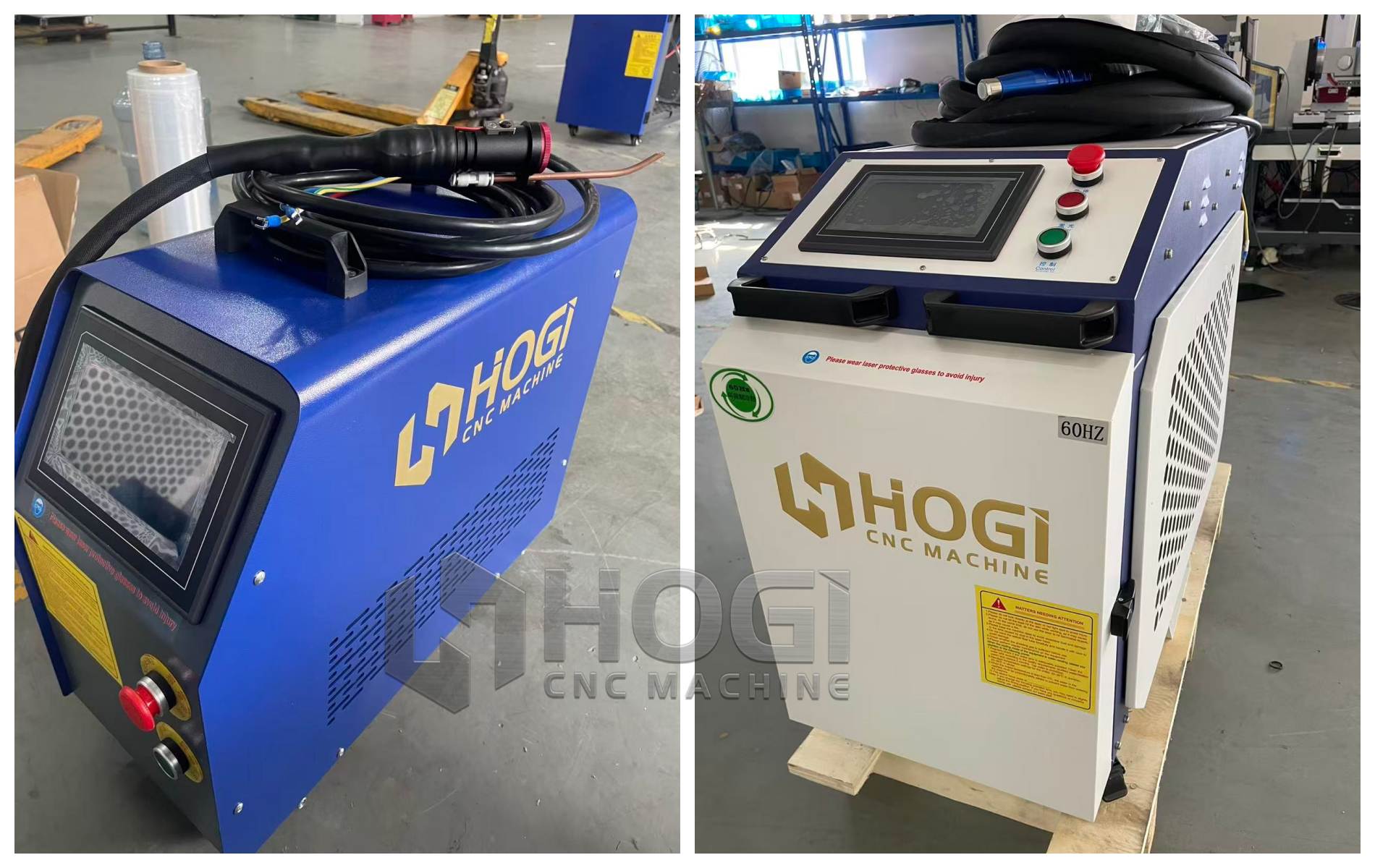

Handheld Pulse laser welding machine 1200W
HOGI Handheld Pulse Laser Welding Machine 1200W 2000W
Portable Air-cooled Handheld Pulse Laser Welding machine
Pulse Laser Welding Machine 1200w 2000w
Pulse laser welding utilizes lasers that emit short pulses of laser beams with high peak power. Although the instantaneous power can be extremely high, the average power is relatively low, typically ranging from a few watts to several hundred watts. This high peak power enables pulse lasers to melt materials in an extremely short time, making them suitable for high-precision welding.
The instantaneous high-power characteristic of pulse lasers allows for precise control of weld depth. Pulse laser welding is suitable for high-precision welding of thin materials and microstructures, forming fine, shallow welds. This is particularly important in fields such as microelectronics, precision instruments, and medical devices.
HOGI QCW Air-cooled Handheld Pulse Laser welding machine

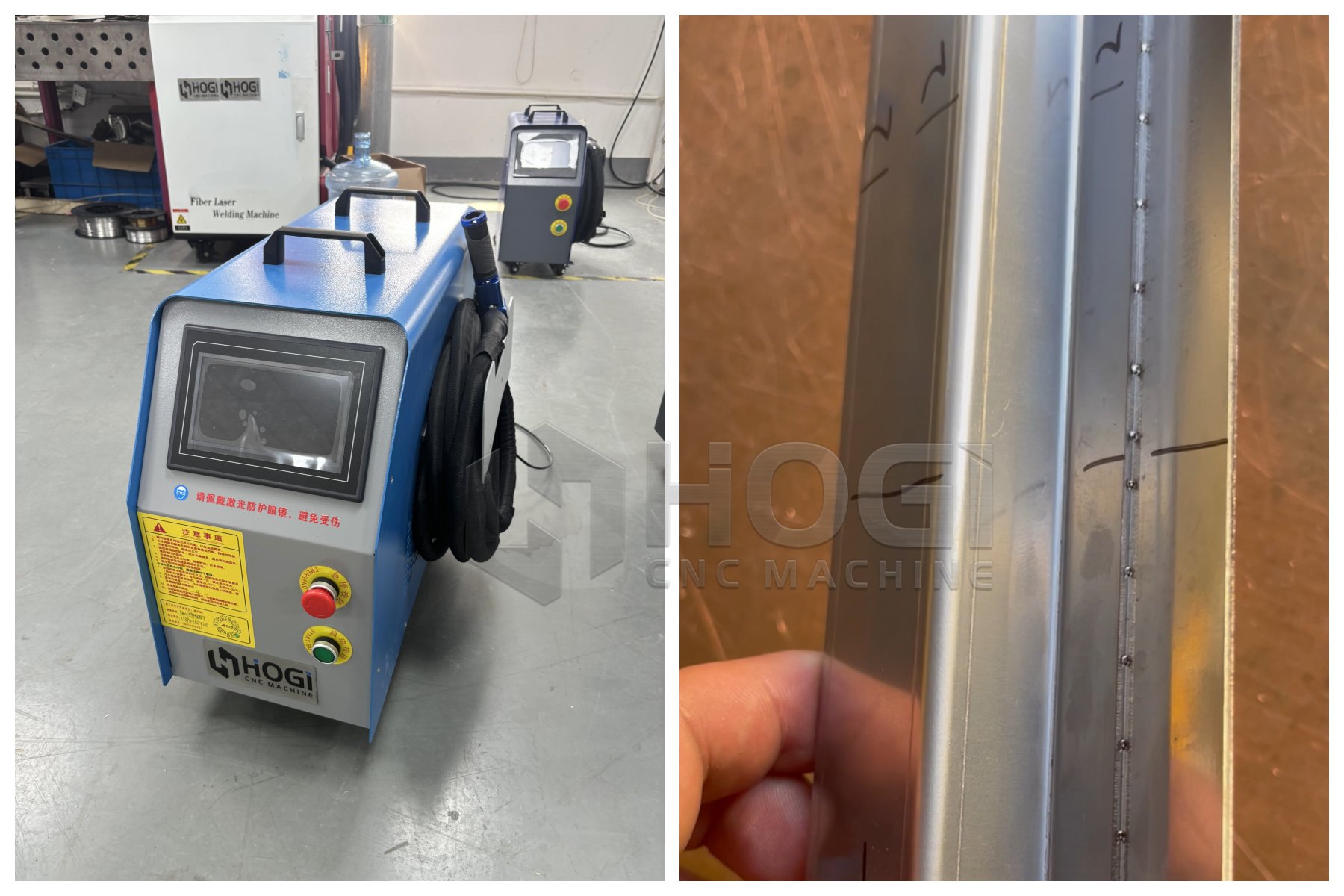

HGA-QCW1200W Air Cooled

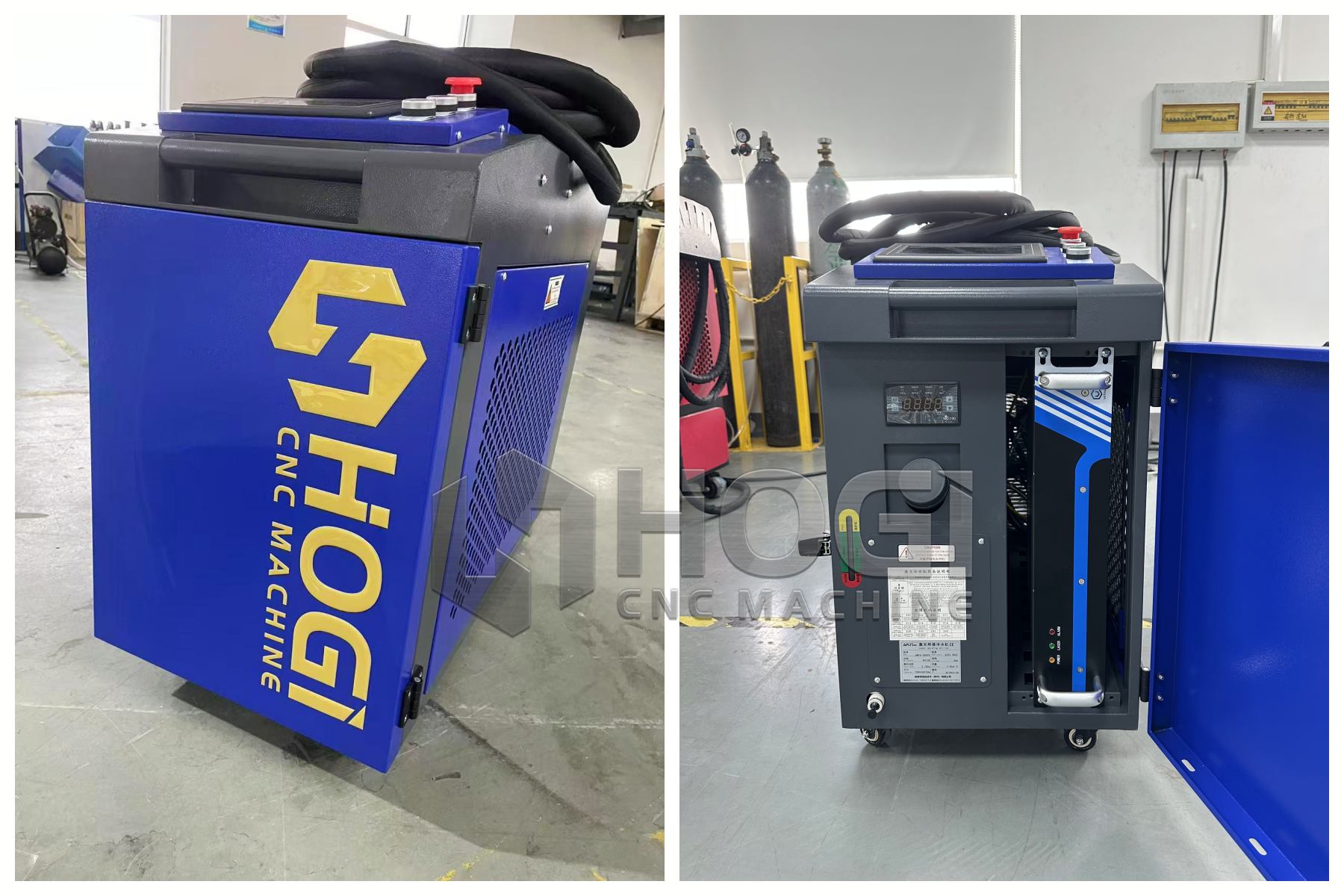

HGW-QCW2000W Water Cooled
QCW pulsed laser welding machine (hereinafter referred to as QCW laser welding) and the traditional YAG pulsed laser welding machine (hereinafter referred to as YAG laser welding), compared with the equipment has a high efficiency of electro-optical conversion, low energy consumption (QCW laser welding photoelectricity conversion of up to 30%-38% YAG laser welding photoelectricity conversion of only 3%-5% of the same laser power, the energy consumption of the YAG laser welding only 1/10), compact structure, maintenance-free adjustment, fiber flexible output and many other advantages, is the ideal light source for industrial laser welding and other applications, QCW laser welding is an optimized combination of light, machine, electricity and software, through the control interface and the standard software , it can monitor the laser’s operation status in real time and alarm indication, and can collect and record the operation data. The laser welding adopts forced air-cooled heat pipe heat dissipation design, no need to replace the internal consumables service life of up to 100,000 hours! Various welding methods.
◇ Differences between pulse welding and continuous welding
Whether to choose pulse welding or continuous welding depends on various factors such as cost, process flow, and production efficiency, as each has its own advantages and disadvantages. Generally speaking, the laser beam emits once each time it travels back and forth within the resonant cavity. This continuous back-and-forth process is referred to as high-frequency oscillation, which results in multiple emissions. When the output frequency reaches a specific value, it is referred to as continuous emission; otherwise, it is considered pulse emission. Therefore, continuous lasers and pulse lasers are accordingly distinguished. However, there is no unified standard for classifying these two types of lasers in both academic and industrial circles. A widely accepted view is that when the repetition frequency is below 102 Hz, it is referred to as a pulse laser; when the frequency is between 102 and 103 Hz, it is a quasi-continuous laser; when the frequency is between 103 and 106 Hz, it is a continuous laser; and when the frequency exceeds 106 to 109 Hz, it is classified as a supercontinuum laser. Different types of lasers exhibit their own advantages and challenges in metal cutting and other applications.
/ | Continuous wave laser welding (CW) | Pulse laser welding (pulse) |
Power level | High, typically several kilowatts or even higher | Instantaneous high efficiency, low average power (several watts to hundreds of watts) |
Weld depth | Deep, suitable for thick materials | Shallow, suitable for thin materials and microstructures |
Length of time | Long hours of continuous work | Short pulses, lasting from milliseconds to nanoseconds |
Heat range | Large heat-affected zone, suitable for thick materials | Small heat-affected zone, suitable for heat-sensitive materials |
Welng speed | High, suitable for large-area welding | Lower, suitable for precision welding |
Welding accuracy | Lower, suitable for large areas and high-intensity welding | High, suitable for fine and microstructure welding |
Equipment costs and maintenance | High, complex equipment and high maintenance costs | Relatively low, with simpler equipment and lower maintenance costs. |
Operational complexity | High, requires professional operation and complex settings | Relatively simple, easy to operate, and easy to control. |
Application | Suitable for automotive manufacturing, aerospace, shipbuilding, heavy industry, etc. | Suitable for electronic manufacturing, medical equipment, precision instruments, jewelry manufacturing, etc. |
CW lasers are suitable for:
1. Deep penetration welds
2. Welds involving crack-sensitive materials, such as 430, 316, and 303 stainless steel
3. High-volume production operations, which can take advantage of the higher feed rates associated with CW laser welding
4. Non-heat-sensitive weld joints
Pulsed lasers are suitable for:
1. Welding on highly reflective metals such as aluminum and copper
2. Welds near heat-sensitive components or thin-walled heat-sensitive welds
3. Spot welding
4. Airtight sealing
When designing welds for an application, other standards must be considered in addition to continuous wave or pulsed modes.

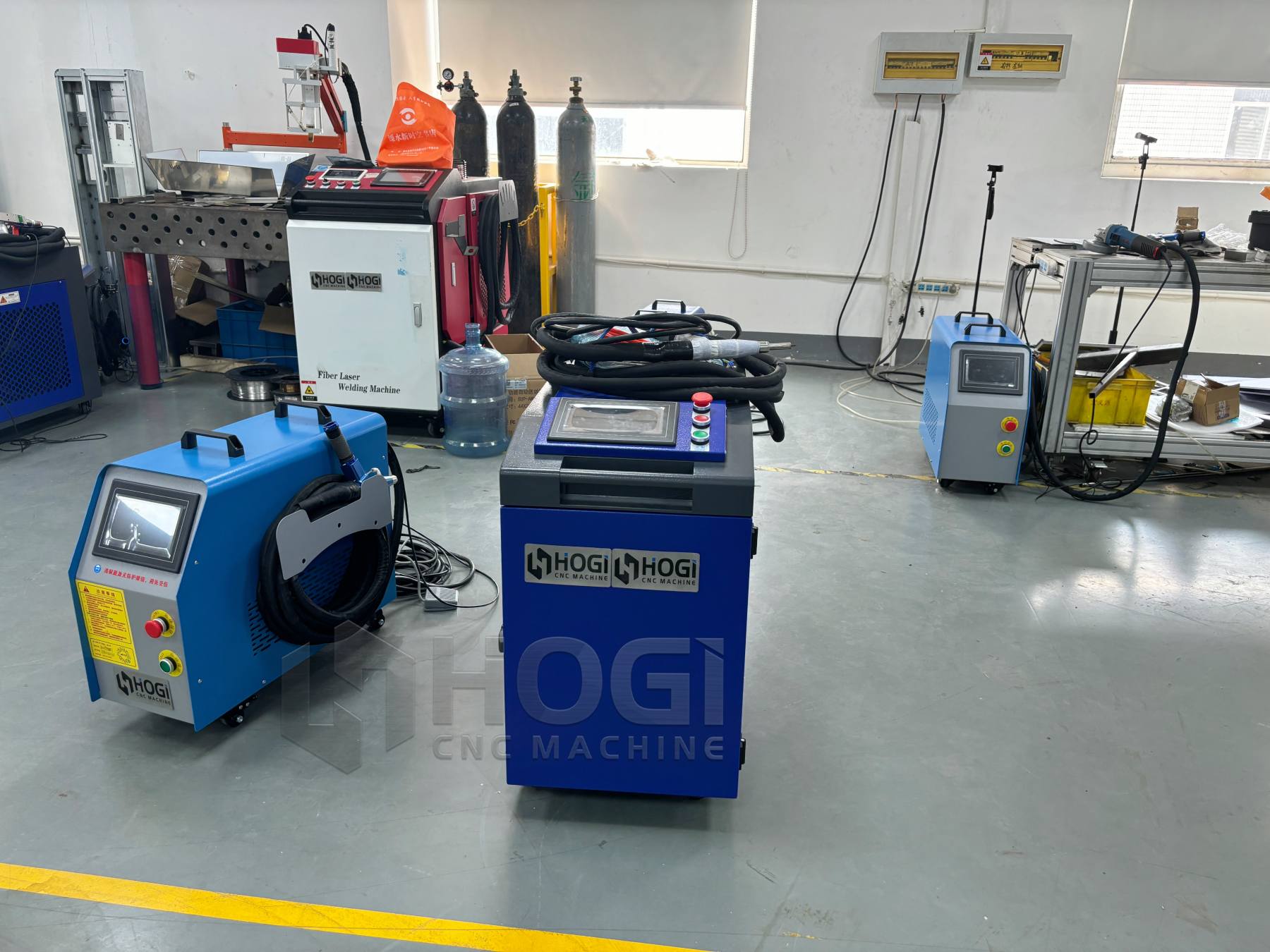

HGA-QCW1200W Air Cooled
