HOGI Duct Flange Robotic Laser Welding System
HOGI duct flange robotic laser welding system delivers unmatched efficiency and precision for HVAC, industrial fan, and ventilation ductwork, transforming complex flange welding into a simple, automated process.
- Maximized Productivity: Dual-station welding platform with movable robot rail enables continuous operation, drastically reducing idle time.
- Unattended, Intelligent Welding: Vision seeking system automatically detects seams and generates welding paths, requiring no manual intervention for blanching.
- Superior Weld Quality: Low heat input, minimal deformation, and smooth, beautiful seams reduce or eliminate post-weld polishing.
- Simple Operation & Strong ROI: Parameterized touch screen control lowers technical threshold, saving 80-90% energy and ~30% processing costs versus arc welding.
HOGI Duct Flange Robotic Laser Welding System
HOGI Manufacturer presents the duct flange robotic laser welding system, a complete automated solution designed for HVAC, industrial fan, and ventilation ductwork. This system integrates a six-axis robot with ground rail, a double-station duct flange welding platform, a vision seeking system, and a bus control system. It seamlessly handles horizontal and vertical automatic welding of duct flanges, elbows, round pipes, and fan impellers — transforming complex flange welding into a simple, unattended process.
- Dual-station efficiency: Double-station welding platform with movable robot rail enables continuous operation. Operators safely load/unload on one station while the robot welds on the other, maximizing utilization.
- Vision-guided intelligence: Vision seeking system automatically detects the weld seam and generates the welding track. The blanching process requires no manual intervention — just parameterized input via touch screen.
- Superior weld quality: Laser welding delivers very low heat input, minimal deformation, and smooth, beautiful seams. Significantly reduces or eliminates post-weld grinding and leveling labor.
- Energy & cost efficient: Saves 80-90% electric energy compared to arc welding; processing costs reduced by about 30%. Operator technical threshold is low, saving labor costs.

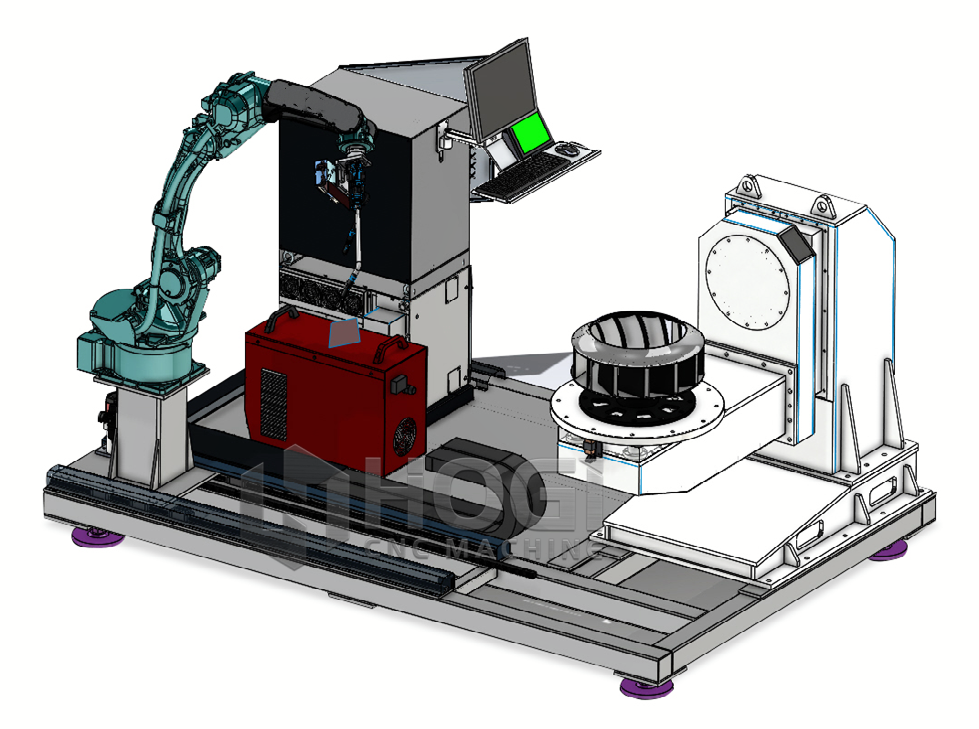

Main Machine Gallery
Details Gallery
HOGI Laser Welding Robot — Technical Advantages
Vision Seam Seeking & Automatic Path Generation: The system uses a laser displacement sensor to detect the actual weld position and automatically generates the welding track. This eliminates the need for precise manual positioning and compensates for workpiece inconsistencies, ensuring perfect welds every time.
Double-Station Rotary Welding Platform: The movable robot ground rail and dual-station duct welding platform dramatically reduce idle time. While one station is being welded, the operator unloads finished parts and loads new ones on the other station — continuous production with no robot waiting.
Multi-Specification Flexibility: Parameterized touch screen control allows quick changeover between different product sizes. Simply input pipe diameter, seam length, and weld parameters — the system automatically adjusts. Ideal for high-mix, low-volume production environments.
Laser Welding + Wire Filling (Optional): The system supports both autogenous laser welding and laser welding with wire filling. Welds carbon steel, stainless steel (304), galvanized sheet, aluminum, and brass. The 2D laser displacement sensor ensures consistent fusion depth even on uneven surfaces.
Low Heat Input & Minimal Deformation: Compared to traditional arc or TIG welding, laser welding delivers extremely low heat input. This means virtually no workpiece distortion, smoother weld seams, and significantly less post-weld polishing — reducing labor costs by up to 40% on finishing work.
Case Studies
Customer Testimonials
“The vision seeking system is a game-changer. We used to spend hours aligning duct flanges manually. Now, the robot finds the seam automatically — we just load and press start. Weld quality is consistent, and we’ve cut our rework by over 80%.” — Production Manager, HVAC Manufacturer
“We weld both thin-gauge galvanized duct and thick carbon steel flanges. The HOGI system handles both perfectly. Parameterized control means changeover takes under 5 minutes. Our operators love how simple it is.” — Factory Owner, Ventilation Fabrication
“The energy savings alone justified the investment. Our arc welding stations used massive amounts of power. The HOGI laser system saves us about 85% on electricity, plus we eliminated post-weld grinding on most jobs.” — Plant Engineer, Industrial Fan Company
Frequently Asked Questions
What materials and thicknesses can the system weld?
How does the vision seeking system work?
Can the system weld round ducts, elbows, and shrimp elbows?
What training is required for operators?
What is the welding speed and production capacity?
Do you offer customization for specific product sizes?
Why Choose HOGI for Laser Welding Automation
HOGI Manufacturer has been a trusted name in welding automation since 2013. We continuously invest in R&D for industrial fan, ventilation duct, environmental protection, and pipeline industries. Our product lineup spans from angle iron punching machines and flange automatic welders to CNC 4-roll rounding machines, straight seam welders, automatic flanging machines, shrimp elbow welders, fan impeller welders, and complete laser cutting production lines. We provide one-stop solutions for round pipe coiling and welding production lines.
Our professional R&D team protects the mechanical structure, software control, and process routes of every product. The production management team strictly controls equipment quality through rigorous testing. The efficient after-sales team provides global service — from installation and training to remote troubleshooting and spare parts supply. We are committed to positive innovation, continuous improvement, and making welding simpler for manufacturers worldwide.
Every HOGI duct flange robotic laser welding system undergoes full-load welding trials, vision system calibration, and 72-hour continuous operation testing before shipment. Our partnership with leading laser component suppliers ensures your machine is equipped with reliable, industrial-grade laser sources and optics. From HVAC ductwork to heavy industrial fans, HOGI delivers the precision, productivity, and simplicity that modern fabrication demands.
Technical Support & Services
Professional installation, calibration, and commissioning of your robotic laser welding system, including vision system setup and double-station synchronization.
Comprehensive training on touch screen control, parameter input, tooling changeover, and daily maintenance — completed in 2-3 days at your facility.
24/7 remote technical assistance via phone, email, or video call for troubleshooting, software updates, and process optimization.
Genuine HOGI spare parts including laser heads, protective windows, sensors, robot cables, and control system modules available for fast shipping.
Standard 2-year warranty covering all mechanical and electrical components, with extended warranty options available for laser source and robot.
Request a Quote
HOGI Duct Flange Robotic Laser Welding System — Specifications
HOGI Robotic Laser Automatic Welding System — This specification page covers the duct flange welding robot configuration, laser welding parameters, and system capabilities. Designed for HVAC ductwork, industrial fans, and ventilation pipelines. Available laser power options: 1500W, 2000W, or 3000W.
Technical Highlights — Laser Welding Performance
Six-axis robot with ground rail achieves precise weld tracking. Vision seeking system compensates for workpiece inconsistencies automatically.
Laser welding consumes significantly less power than arc welding. Standby power near zero. Processing costs reduced by ~30%.
Fast welding speeds on thin-gauge materials. Double-station design eliminates idle time — continuous production while operator loads/unloads.
No consumable electrodes or nozzles. Laser source requires minimal maintenance. Simple cleaning of protective window and vision sensor lens.
Welding Parameters — Laser Power vs. Material Thickness
| Material | 1500W | 2000W | 3000W |
| Stainless Steel | 3mm | 4mm | 6mm |
| Carbon Steel | 3mm | 4mm | 6mm |
| Galvanized Sheet | 2.5mm | 3mm | 5mm |
| Aluminum | 1.5mm | 2.5mm | 5mm |
| Brass | 1.5mm | 2.5mm | 5mm |
| Total length of fiber | 10m (standard) |
| Protective gas | Argon or Nitrogen, 0.1-0.2 MPA |
| Spot diameter | 1.5mm (optional 2.5mm) |
| Laser wavelength | 1070nm ± 10nm |
| Cooling method | Water cooling |
| Power supply | 380V/50Hz (customizable) |
Technical Principles — Laser Welding + Vision Guidance
The system uses fiber laser welding technology, delivering a high-energy-density beam to the workpiece for deep penetration with minimal heat input. The 2D laser displacement sensor scans the weld seam before welding, detecting the actual seam position even on uneven surfaces. The control system then automatically generates the optimized welding path and sends real-time commands to the six-axis robot. Optional wire filling allows welding of thicker materials or gap bridging. The double-station rotary platform with movable robot rail enables continuous production — while one station is being welded, the operator unloads finished parts and loads new ones on the other station, maximizing machine utilization.
System Configuration Diagram
Operating Environment Requirements
Auxiliary gas requirements: Welding protective gas: nitrogen or argon, purity 99.99% or higher. First check the nameplate on the gas cylinder to verify purity and pressure requirements (0.1-0.2 MPA). Introduce gas from cylinder to the protective gas inlet in the correct manner.
Environmental conditions: Operating temperature: 5°C to 40°C; humidity: less than 90% non-condensing; well-ventilated area; stable power supply with surge protection recommended.
Welding Quality Specifications
Weld seam uniformity: Consistent fusion depth with smooth, even bead appearance. Minimal spatter and undercut when parameters are correctly set. Post-weld grinding and polishing significantly reduced or eliminated on most applications.
Feasibility conditions: The welding performance of common metals (stainless steel, carbon steel, copper, aluminum) is excellent. As long as the workpiece gap does not exceed 0.5mm, the system can completely realize the welding requirements. The vision seeking system can automatically compensate for minor gaps and misalignments.
HOGI Duct Flange Robotic Laser Welding System — Video Demo
Live Demonstration Highlights
Watch our duct flange robotic laser welding system in action. This video showcases the complete workflow — from manual loading on the double-station platform to automatic vision-guided seam seeking and high-speed laser welding. See how the six-axis robot with ground rail handles both horizontal and vertical flange welding on HVAC ductwork, round pipes, and industrial fan components.
- Vision Seam Seeking in Action: Watch the 2D laser displacement sensor automatically detect the weld seam and generate the welding path in real-time — no manual programming required.
- Double-Station Continuous Production: See how the operator loads/unloads on one station while the robot welds on the other. Zero idle time, maximum throughput.
- High-Speed Laser Welding: Observe the smooth, spatter-free weld seam with minimal heat input. Compare to traditional welding — no post-weld grinding needed on most applications.
- Multi-Specification Changeover: Quick demonstration of parameterized touch screen control — change product sizes in under 5 minutes with simple parameter input.
Engineered for HVAC, Industrial Fans & Ventilation Ductwork
As demonstrated in the video, the HOGI robotic laser welding system is purpose-built for manufacturers of ventilation ducts, industrial fans, air handling units, and pipeline components. The system handles duct flanges (both rectangular and round), shrimp elbows, straight pipe seams, ring seams, and fan impeller assemblies. With energy savings of 80-90% compared to arc welding and processing cost reductions of ~30%, this system delivers rapid ROI for medium to high-volume production environments. Available with 1500W, 2000W, or 3000W laser power to match your material thickness requirements.
