Fans and ventilation.
Flange flanging spinning machine is a general-purpose flange flanging machine with very wide field of use and high cost performance. It is mainly used for flanging, servo indexing punching and cutting of pipe-shaped parts. This model is adapted to the auxiliary processing of Air outlet parts, chemical tanks, containers and other products.
Spinning technology is widely used in pipeline ventilation, fans, HVAC and other fields. The application of spinning process in the fan industry not only improves the quality and performance of the products, but also significantly reduces the production cost and working hours, and promotes the progress and innovation of technology. The spinning equipment of our company can complete the large-scale mass production of such products and special specimens, with stable workpiece quality and high output.
Fan inside and outside flanging, fan inlet front plate CNC spinning machine, heavy-duty spinning machine, hardware molding machine
Spinning process:Spinning machines serve many industries such as lighting, kitchenware, automotive, fan, packaging, hardware, chemical and construction, and provide system solutions.
Spinning – Processing and molding in steps: When using the spinning process, the blank is held tightly between the spinning mandrel and the tail top. It is important that the rotary die matches the internal shape of the workpiece and that the spindle rotates the blank.
By the rotary wheel from the longitudinal and axial direction of the controlled extrusion pressure to the blank, so that the material is gradually extruded to the mandrel, while the rotary wheel alternately to the edge of the blank reciprocating curve movement, and finally the finishing movement so that the workpiece to achieve the desired size and surface quality.
Principles of the spinning process: In spinning which is a chipless molding process, a round metal blank, simple billet or prefabricated billet is first brought into rotation. The metal part is extruded through the spinning wheel and the metal starts to flow. In this way, complex busbar shapes can be obtained with minimal tooling costs. A wide range of hollow bodies with a very small tolerance range and excellent surface quality can be obtained. The advantages of the spinning process are obvious: with this process, the wall thickness and profile of the workpiece can be determined with a maximum of accuracy and can be accurately repeated.

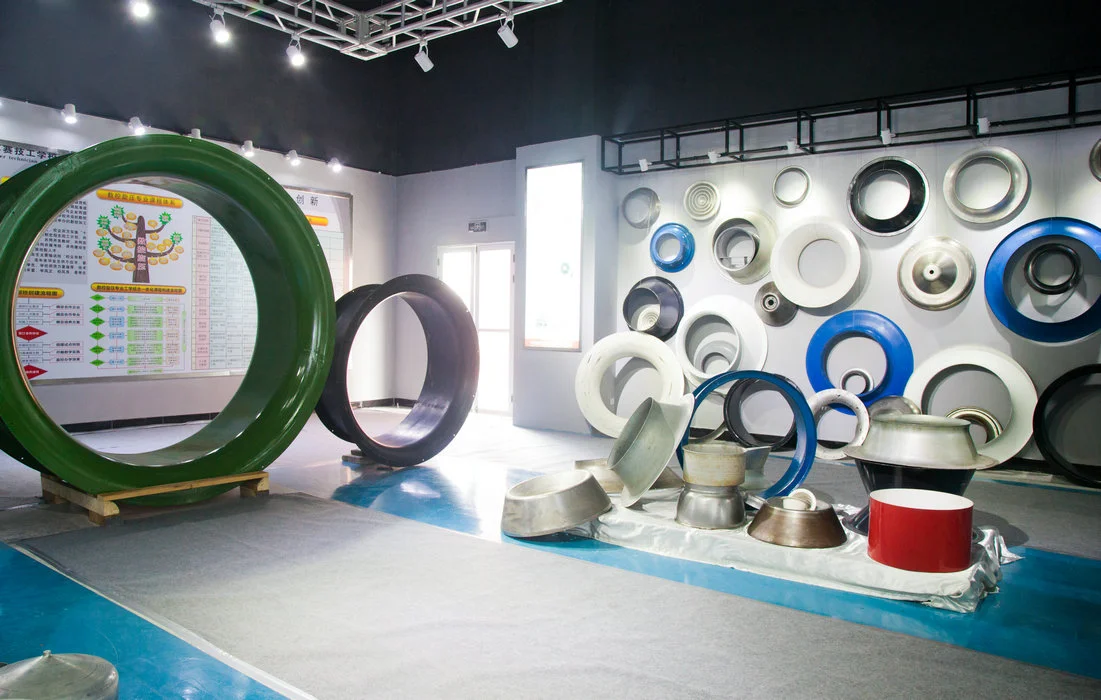

Spinning manufacturing fan parts with material savings, one-piece molding without welds, high molding accuracy, low mold costs and other characteristics, especially for the inlet can be used without mold spinning molding, the initial investment is lower. At present, this technology has been applied to a large number of medium and high-end fan manufacturers.CNC Metal Spinning Machines, HOGI CNC can provide economical spinning solutions in the production of fan and ventilator components with consistent workpiece quality and high throughput.
Equipment parameters.
With mature CAD drawing and programming software function, the rotary wheel movement trajectory can be straight line, arc, multi-arc connection line and the combination of curves, etc., and input to the computer for the channel standardization programming.
Operators can input process parameters and spinning passes through keyboard and operation panel, and can edit, store and call at will.
With the core mold profile “copy” protection function, that is, in the process adjustment and recording back to the demonstration of teaching, the rotary wheel will not collide with the core mold. The machine can pause the feed speed and spindle speed in the automatic program. It is equipped with travel limit protection, hardware and software limit protection in the control system, fault detection and alarm function. boot to each unit automatic fault detection, automatic diagnosis and overload protection and other functions.
According to the user’s requirements, it can realize all kinds of special shapes of parts spinning and forming, and ensure that the workpiece shape surface, diameter, thinning rate and other related dimensions meet the requirements.Complete the functions of trimming, flanging, crimping, indenting and rolling processing in the same machine.
Use: This machine is suitable for lamps, cookware, handicrafts and other industries. It can complete the batch production of barrel, cone, parabolic, horn, slug and other series of products.
Wide range of products can be processed, sturdy structure, high stability, the mechanical structure adopts three-dimensional overall design, compact and reasonable structure at the same time for the optimization of the processing force. The operation of the equipment is humanized, safe and reliable.
