HOGI Hybrid Servo CNC Press Brake Machine
HOGI Manufacturer presents the hybrid servo CNC press brake, a next-generation bending solution that merges the high-tonnage power of hydraulic presses with the precision and efficiency of all-electric servo technology. Designed for demanding sheet metal fabrication, this system features a servo-driven bidirectional pump, closed-loop linear encoder feedback, and modular hydraulic-electric integration—delivering consistent accuracy, rapid cycle times, and substantial energy savings across multi-shift production environments.- 30%–70% energy savings: Servo motor stops completely when ram is idle, achieving zero-power standby; electricity costs drop significantly compared to traditional hydraulic press brakes.
- High precision & stability: Closed-loop control with linear encoders ensures ram repeatability of ±0.005 mm to ±0.01 mm; oil temperature rise is minimal, maintaining accuracy during continuous operation.
- Faster cycle times: Millisecond-level servo response enables smooth, rapid transitions between fast approach, bending, and return; idle strokes are 20%–50% faster than conventional hydraulic machines.
- Low noise & reduced maintenance: Quiet operation (typically below 65–70 dB); reduced oil volume by 50%–70% extends oil change intervals and lowers leak risks; modular design simplifies routine service.
HOGI Hybrid Servo CNC Press Brake Machine
HOGI hybrid servo press brake combines the high-tonnage capability of traditional hydraulic press brakes with the precision and energy efficiency of all-electric servo technology. This hybrid servo CNC press brake addresses common pain points of conventional hydraulic machines—high power consumption, excessive heat, and accuracy drift due to oil temperature—making it a mainstream choice for modern sheet metal fabrication.
Technology Highlights
For industrial procurement and technical marketing, the hybrid press brake advantage can be summarized in five core dimensions:
1. Extreme Energy Efficiency (30%–70% Savings)
• Power on Demand: Unlike traditional hydraulic press brakes where the main oil pump motor runs continuously, the hybrid system uses a servo motor to drive a bidirectional fixed-displacement pump. When the ram is stationary or the machine is idle, the servo motor stops completely, achieving zero-power standby.
• Reduced Power Consumption: In real production cycles, electricity costs drop by 30%–70% compared to conventional hydraulic press brakes.
2. High Precision & Stability (Unaffected by Oil Temperature)
• Minimal Heat Generation: Traditional hydraulic presses generate heat through frequent high-pressure overflow, changing oil viscosity and affecting bottom-dead-center accuracy. The hybrid system builds pressure only when needed, so oil temperature rises very slowly, often eliminating the need for a cooler.
• High Repeatability: With servo motor response in milliseconds and closed-loop linear encoder feedback, ram repeatability reaches ±0.005 mm to ±0.01 mm, ensuring consistent high-volume production.
3. Significantly Improved Processing Efficiency
• High-Frequency Response: Servo control enables smooth, rapid transitions between fast approach, bending speed, and return speed.
• Faster Idle Strokes: Fast approach and return speeds are 20%–50% faster than traditional hydraulic presses, shortening cycle time per part and boosting overall productivity.
4. Low Noise & Environmental Friendliness
• Quiet Operation: Hybrid oil-electric press brakes are silent when idle; bending noise typically stays below 65–70 dB, greatly improving workshop conditions.
• Reduced Oil Consumption: Compared to hundreds of liters in traditional systems, hybrid tanks (e.g., integrated dual-servo pump control) reduce oil volume by 50%–70%, extending oil change intervals and lowering waste oil costs and leak risks.
5. Low Maintenance Costs & Long Equipment Lifespan
• Extended Hydraulic Component Life: Without continuous high pressure and temperature, seals, hoses, and valves age more slowly, reducing failure rates.
• Modular Design: Modern hybrid systems (e.g., Hoerbiger or eMotion modules) simplify piping, minimize leak risks, and make routine maintenance easier.
Product Gallery

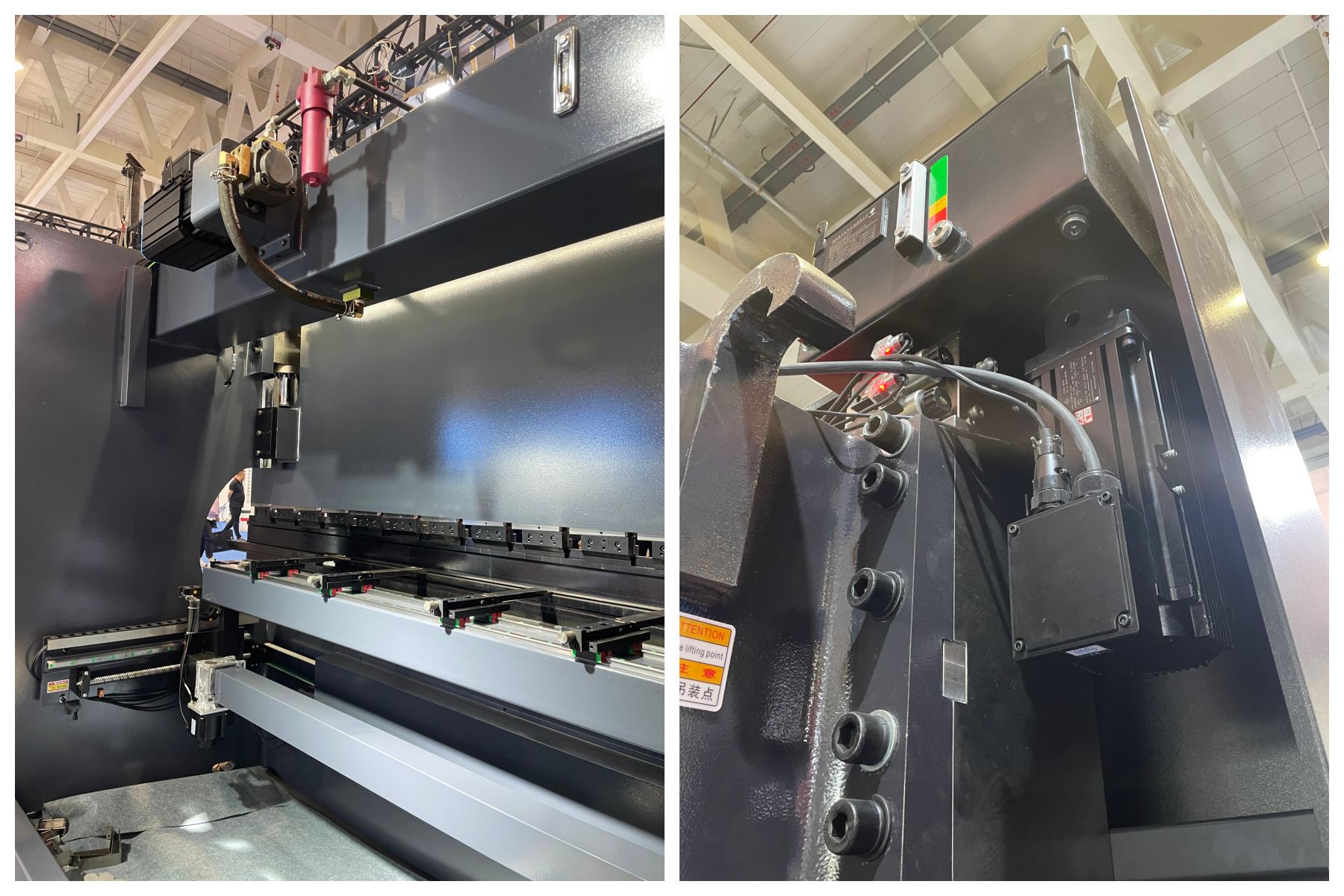

The following images showcase the overall structure, hybrid power system, and dual-servo configuration of the HOGI hybrid servo CNC press brake.

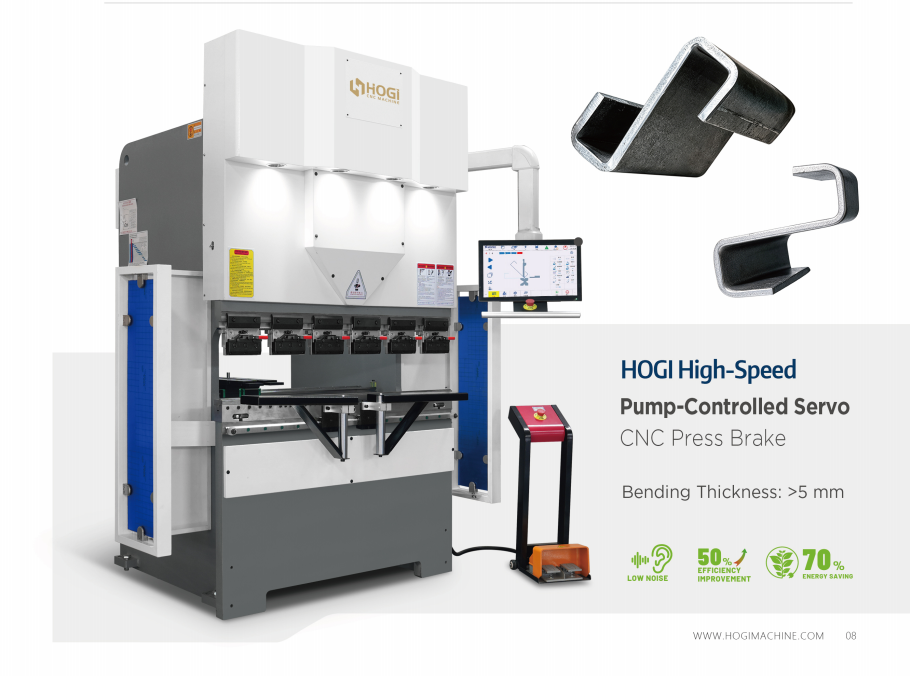

Key Performance Summary (55 Ton / 1250 mm)
All tonnages available: 40T–1000T+
- Energy saving: up to 70%
- High precision & repeatability: ±0.005 mm
- Reduced oil capacity & eco-friendly
- Low noise level: < 68 dB
- Zero standby power consumption

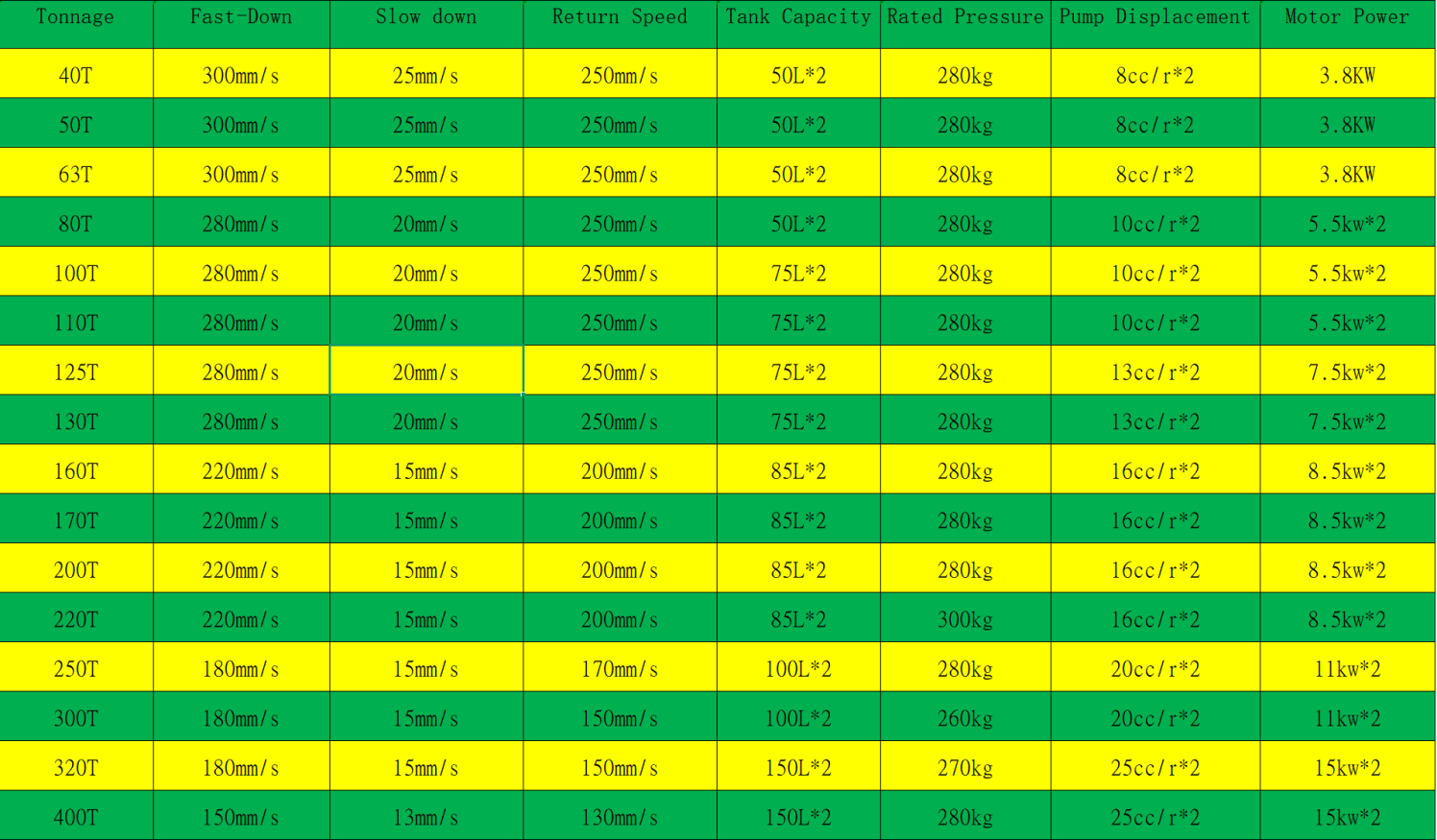

Technical documentation: The technical sheet provides a visual summary of the machine’s configuration and performance data. Detailed parameter tables and technical principles are provided on the Specification tab.
Applications
HOGI hybrid servo press brakes bridge the gap between all-electric press brakes (limited in tonnage) and traditional all-hydraulic press brakes (limited in precision and energy efficiency). Their combination of high tonnage, powerful output, high precision, high efficiency, and low energy consumption makes them suitable for virtually all industries with demanding sheet metal requirements.
1. Core Industries
High-end Enclosures & Server Racks
• Representative Products: IT server racks, telecommunications base station cabinets, precision instrument housings, photovoltaic inverter enclosures.
• Application Characteristics: Multiple bends with numerous narrow edges; high consistency required at lower dead point and angular accuracy. The high responsiveness of the hybrid servo press brake improves bending efficiency and yield rates.
Automotive & Transportation
• Representative Products: High-speed rail/subway car structures, automotive chassis control arms, new energy battery pack housings, commercial vehicle chassis components.
• Application Characteristics: High-strength steel or aluminum alloys; high pressing force and strict tolerance control.
Elevators and Architectural Sheet Metal
• Representative Products: Elevator car wall panels, door panels, architectural metal curtain walls, stainless steel trim strips.
• Application Characteristics: Long workpieces (2.5 m to 6 m+); no oil contamination or surface indentations; highly consistent bending angles over long distances.
Home Appliances & Kitchenware
• Representative Products: Refrigerator/air conditioner housings, commercial ovens, stainless steel built-in kitchen cabinets, range hood liners.
• Application Features: Large batches and fast rhythms; the rapid downstroke and return of the hybrid servo system significantly reduce cycle time per unit.
Heavy Machinery & Agricultural Equipment
• Representative Products: Excavator/loader body panels, agricultural machinery structures, thick-plate power distribution cabinets.
• Application Features: Medium to thick plates (6–16 mm+); continuous stable output of hundreds of tons; hybrid hydraulic-electric drive prevents oil overheating under prolonged heavy load.
2. Applicable Material Types
| Cold-Rolled/Hot-Rolled Carbon Steel SPCC, Q235, Q355 | Extremely versatile; stable high-tonnage forming |
| Stainless Steel Sheets 304, 316, 430 | High springback; precise servo pressure control effectively compensates |
| Aluminum Alloys & Copper Sheets 5052, 6061, Red Copper | Soft material prone to scratching; smooth fine-tuning reduces surface marks |
| High-Strength / Wear-Resistant Plates Domex, Hardox, Weldox | Requires high tonnage and rigid structure; strong overload protection |
3. Best-Fit Scenarios
- Multi-shift or 24/7 factories: 30%–70% energy savings translate into substantial monthly electricity cost reductions; low oil temperature ensures consistent precision around the clock.
- High-precision, high-value-added parts: High-end custom sheet metal requiring angle tolerances within ±0.3°.
- Workshops with strict environmental & noise rules: No continuous oil pump hum and minimal leak risk, supporting green factory and ISO 14001 compliance.
Case Studies
Case 1 – Automotive factory, Germany: After upgrading to HOGI hybrid servo bending machines, production efficiency increased by 42%, with significantly improved bending consistency on complex automotive parts.
Case 2 – Steel fabrication plant, Mexico: Energy consumption dropped by 38%, while bending accuracy reached 0.005 mm, helping the plant meet strict export quality standards and reduce rework.
Case 3 – Construction metal workshop, UAE: Noise levels were reduced to below 60 dB, improving the working environment and reducing operator fatigue during long shifts.
Customer Testimonials
“The precision and stability of HOGI’s hybrid servo bending machine exceeded our expectations. Our defect rate dropped dramatically.” — German Automotive Plant Manager
“Energy savings were immediate. The machine runs cooler, quieter, and faster than our previous hydraulic models.” — Mexico Steel Fabrication Director
“Installation was fast, and the machine required almost no adjustment. Excellent build quality.” — UAE Construction Metal Workshop Owner
Frequently Asked Questions
What materials can this machine bend?
The machine can bend carbon steel, stainless steel, aluminum, copper, and various alloy plates commonly used in industrial sheet metal processing.
What is the maximum bending thickness?
It is optimized for plates thicker than 5 mm, making it suitable for heavy-duty applications and structural components.
Does it support multi-axis CNC control?
Yes. The machine is compatible with advanced CNC systems such as DELEM, ESA, and Cybelec, enabling multi-axis control and complex bending programs.
Is maintenance complicated?
No. The compact hybrid system eliminates complex hydraulic piping, simplifying maintenance, reducing potential leakage points, and shortening downtime.
How energy-efficient is the machine compared to traditional models?
Compared to conventional hydraulic bending machines, HOGI’s hybrid servo design can improve energy efficiency by up to 50% and reduce hydraulic oil consumption by about 70%. For detailed parameter tables and technical principles, please refer to the Specification tab.
Why Choose HOGI Bending Machines
HOGI specializes in intelligent sheet metal processing equipment, including CNC press brake bending machines, panel benders, CNC laser cutting machines, intelligent welding systems, industrial robots, rolling machine production lines, CNC punching machines, and flexible production units. Backed by more than 200 advanced processing machines—such as CNC five-axis machining centers, gantry machining centers, large heat treatment furnaces, and precision grinding equipment—HOGI ensures that every bending machine is built with robust structure, high stability, and long service life. Strict quality inspection with coordinate measuring instruments, laser interferometers, and other precision tools guarantees that each unit meets demanding global standards.
By combining imported core components, hybrid power technology, and a mature R&D and quality control system, HOGI’s hybrid servo CNC press brakes deliver a unique balance of precision, efficiency, and reliability. The pump-controlled servo system significantly reduces energy consumption and oil usage, while maintaining ultra-high positioning accuracy and low noise. This makes HOGI’s CNC bending machines not only a high-performance choice for modern factories, but also a long-term, cost-effective solution for customers seeking stable production, lower operating costs, and consistent bending quality.
Request a Quote
Contact us for pricing, technical consultation, or customized CNC bending solutions tailored to your production needs.
Contact SalesHOGI Hybrid Servo CNC Press Brake – Specification
HOGI hybrid servo press brake specification page focuses on technical parameters and selection support for the hybrid servo CNC press brake series. It complements the product page by providing data-driven details for engineering and procurement teams.
Technical Specifications
| Bending thickness (55T/1250 mm): | > 5 mm |
| Slider positioning accuracy Y1, Y2: | ±0.01 mm |
| Repeat positioning accuracy Y1, Y2: | ±0.01 mm |
| Angular tolerance of bending workpiece: | ±20′ / full length |
| Straightness tolerance: | 0.20 mm / 1000 mm |
| Repeat positioning accuracy X-axis backstop: | ≤ ±0.01 mm |
| Repeat positioning accuracy R-axis backstop: | ≤ ±0.02 mm |
| Drive system: | Hybrid servo (servo motor + bidirectional fixed-displacement pump) |
| Noise level: | < 60 dB |
| Oil temperature (continuous operation): | < 40°C |
| Energy efficiency improvement: | +50% vs traditional hydraulic systems |
| Hydraulic oil consumption reduction: | -70% vs conventional designs |
Technical Principles
The HOGI hybrid servo press brake uses a servo motor to drive a bidirectional fixed-displacement hydraulic pump. Pressure is generated only when the ram moves or bending force is required; when the ram is stationary, the servo motor stops, achieving zero-power standby. Closed-loop control with linear encoders ensures high repeatability and stable bottom-dead-center accuracy, while the reduced oil flow and pressure cycling minimize heat generation and oil temperature drift.
Technical Highlights
1. Precision & Repeatability: Servo-driven hydraulic control with linear encoder feedback achieves slider positioning accuracy of ±0.01 mm and repeat positioning accuracy of ±0.01 mm, suitable for high-volume precision sheet metal parts.
2. Energy Efficiency: By eliminating continuous motor operation and reducing overflow losses, the hybrid system improves energy efficiency by up to 50% compared to traditional hydraulic press brakes, with hydraulic oil consumption reduced by about 70%.
3. Dynamic Response & Speed: Millisecond-level servo response enables smooth transitions between fast approach, bending, and return phases, shortening cycle time and improving throughput without sacrificing accuracy.
4. Maintenance & Reliability: Lower average pressure and temperature slow the aging of seals, hoses, and valves. Modular hybrid units simplify piping, reduce potential leak points, and make routine inspection and service more straightforward.
Parameter Table Images
Request Technical Data
For detailed drawings, full tonnage range specifications, and configuration options, contact our technical team.
Get Technical DataHOGI Hybrid Servo CNC Press Brake In Action
Live Demonstration Highlights
This video demonstrates the HOGI hybrid servo press brake in real working conditions, showing how the hybrid servo CNC press brake combines high tonnage output with precise, energy-efficient motion control for demanding sheet metal applications.
- 30%–70% Energy Savings: Observe how the servo motor stops when the ram is idle, achieving zero-power standby and significantly reducing electricity consumption compared to traditional hydraulic press brakes.
- Stable Precision Under Continuous Operation: See consistent bending accuracy even during long production runs, thanks to slow oil temperature rise and closed-loop servo control.
- Faster Cycle Times: Fast approach and return speeds are visibly quicker than conventional hydraulic machines, reducing cycle time per part and increasing overall productivity.
- Low Noise & Clean Workshop: The machine operates quietly, with bending noise typically below 65–70 dB and no continuous oil pump hum, improving the working environment.
Engineered for High-Tonnage, High-Precision Sheet Metal Fabrication
As shown in the video, the HOGI hybrid servo press brake is optimized for factories that need both high tonnage and high precision—such as automotive structures, elevator panels, heavy machinery components, and high-end enclosures. Its hybrid drive delivers powerful, stable force while keeping energy use, noise, and oil consumption low, making it a future-proof choice for modern, efficiency-driven manufacturing.
