HOGI Press arm type P series is applicable to mesh, corrugated, hollow and all kinds of flat or shaped work pieces.
HOGI Press Arm Type P Series Panel Bending Center
HOGI Press arm type P series is applicable to mesh, corrugated, hollow and all kinds of flat or shaped workpieces. For large batch production of a single variety of sheet metal parts, the advantages are obvious. For small batches of multiple varieties, HOGI intelligent flexible bending center provides two solutions to improve efficiency and flexibility.
- Manual tool change with automatic online compensation helps reduce sample setup time.
- Automatic tool change solution improves bending efficiency according to workpiece shape.
- 3D software simulation supports design verification before real production.
- Self-developed robotic arm and integrated control enable seamless workpiece switching.
- Customizable automated production lines are available for different factory layouts.

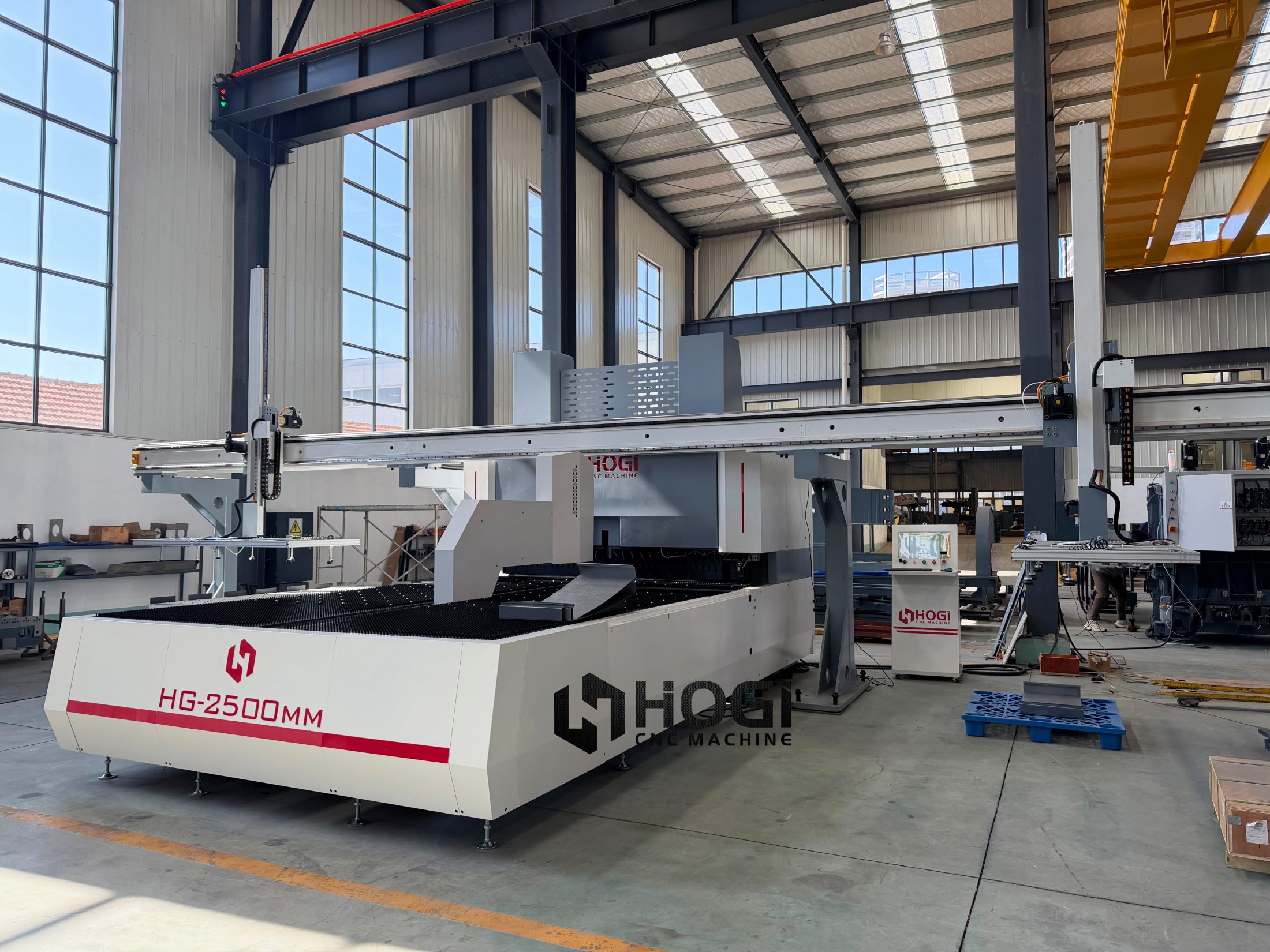

Main Machine Gallery
Details Gallery
HOGI The Advantages of Press Arm Type P Series
Flexible Production: Suitable for single-variety mass production and multi-variety small-batch processing.
Manual and Automatic Tool Change: Two solutions are available to improve setup efficiency and bending flexibility.
3D Simulation: The system supports simulation verification before actual production for better accuracy.
Integrated Robotic Control: The self-developed robotic arm automatically generates actions when changing workpieces.
Customized Automation: Production lines can be customized for single-arm robot, double-arm robot, or robot plus quilting frame loading and unloading.
Stable Performance: The bending center is designed for reliable operation and consistent workpiece quality.
Improved Efficiency: The full automation concept helps reduce manual intervention and increase productivity.
Case Studies
Customer Testimonials
Frequently Asked Questions
What kinds of workpieces can the P series process?
Is it suitable for both large and small batch production?
Does the system support automatic tool change?
Can it be customized for automated production lines?
Does it include software simulation?
Why Choose HOGI Bending Machines
HOGI focuses on advanced sheet metal processing solutions with strong manufacturing capabilities and strict quality control systems. Each machine is built using high-end machining equipment and tested with precision instruments to ensure long-term stability and performance.
With continuous innovation in flexible bending center technology, HOGI provides automated, intelligent, and highly reliable solutions that meet the evolving needs of modern manufacturing industries.
This press arm type P series is an ideal choice for manufacturers seeking flexible production, reduced manual intervention, and customized automation solutions.
Technical Support and Comprehensive After-Sales Service
We maintain a dedicated after-sales service team of rigorously trained engineers with extensive equipment repair and service experience.
Upon receiving a request, our service team responds immediately and dispatches engineers for remote or on-site assistance based on the fault nature.
We guarantee the supply of genuine manufacturer parts to ensure the quality and optimal performance of all equipment repairs.
We provide comprehensive equipment operation and maintenance training, enabling customers to operate machinery proficiently and identify or resolve faults promptly.
Tailored to customer requirements, we offer both hardware and software upgrade services to ensure our solutions continue to meet evolving needs.
Request a Quote
HOGI Press Arm Type P Series Panel Bending Center — This specification page covers the panel bending center applicable to mesh, corrugated, hollow, flat, and shaped workpieces used in sheet metal fabrication.
Model Range
HG-LHA05-PC Series (Press Arm Type | 15 Axis)
| Feeding method | Press Arm type |
| Locate method | Y axis double lift automatic positioning tools |
| Standard number of axes | 15 Axis |
| Suitable material | Stainless steel, aluminum plate, cold plate and other metal materials |
| Processing thickness | 0.35-2mm |
| Processing size | Max sheet size 2500*1500 |
| Metal sheet requirements | Suitable for mesh, corrugated, hollow and all kinds of flat or special-shaped workpieces |
| Features | automatic reposition, oblique reposition, Improved C axis rotation speed and accuracy, fast release and installation type uppper pressing tool, standard power horn blank holder, Max. bending height 300mm |
HG-LHA05-PS Series (Press Arm Type | 18 Axis)
| Feeding method | Press Arm type |
| Locate method | Y axis double lift automatic positioning tools |
| Standard number of axes | 18 Axis |
| Processing thickness | 0.35-3mm |
| Processing size | Max sheet size 2500*1500 |
| Features | Deflection compensation CNC adjustment, bending plate thickness interval increase, bending thick plate accuracy increase, comprehensive bending speed high, quick release quick assembly type upper pressure tool, Standard power hinge knife |
HG-LHA05-PA Series (Press Arm Type | Automatic Tool Change | 21 Axis)
| Feeding method | Press Arm type |
| Splicing tool method | Automatic Change tool |
| Auxiliary tool structure | Standard auxiliary tool |
| Standard number of axes | 21 Axis |
| Processing size | Max sheet size 2500*1250 |
| Features | High comprehensive bending speed. Standard equipped with power hinge tool; replace the workpiece without manual splicing tools, more convenient operation, higher efficiency; equipped with bending sub-tool, can realize the workpiece partial bending; several columns of combined upper pressure knife, higher efficiency of knife (unique patent) |
Detailed Technical Parameters (PC Series)
| Items | LHA05-1400PC1/1400PC3 | LHA05-2000PC1/2000PC3 | LHA05-2500PC1/2500PC3 |
| Max. bending speed | 0.2 second/time | 0.2 second/time | 0.2 second/time |
| Max. bending width | 1400mm | 2000mm | 2500mm |
| Max. bending height | 170mm (1400PC1) / 300mm (1400PC3) | 170mm (2000PC1) / 300mm (2000PC3) | 170mm (2500PC1) / 300mm (2500PC3) |
| Rated voltage | 380v | 380v | 380v |
| Total motor power | 38Kw | 77Kw | 79Kw |
| Average power | about 1.9Kw | about 2.6Kw | about 2.9Kw |
| Noise | about 50dB | about 50dB | about 50dB |
| Machine size | 440*190*290cm | 510*265*330cm | 565*300*340cm |
| Total machine weight | about 15 t | about 18 t | about 23 t |
| Max. Bending thickness (Thicker panel Customizable) | UST 515N/mm2: 304 stainless steel 1.5mm UST410N/mm2: Cold Plate 2.0mm UST 265 N/mm2: Aluminum plate 3.0mm |
UST 515N/mm2: 304 stainless steel 1.5mm UST410N/mm2: Cold Plate 2.0mm UST 265 N/mm2: Aluminum plate 3.0mm |
UST 515N/mm2: 304 stainless steel 1.5mm UST410N/mm2: Cold Plate 2.0mm UST 265 N/mm2: Aluminum plate 3.0mm |
| Minimum panel thickness | 0.35mm | 0.35mm | 0.35mm |
| Four sides forming minimum inner size | 140*190mm | 140*190mm | 140*190mm |
| Two sides forming minimum inner size | 140mm | 140mm | 140mm |
| Max. bending size | 1400*1400mm | 2000*1250mm | 2500*1500mm |
| Number of axes | Standard synchronized 15 axis | Standard synchronized 15 axis | Standard synchronized 15 axis |
HOGI Automatic Panel Bender Flexible Bending Center In Action
Live Demonstration Highlights
Watch our HOGI press arm type panel bender in action. This video showcases flexible bending performance, automated tool change options, and robotic arm integration for different sheet metal workpieces.
- Flexible Workpiece Compatibility: Suitable for mesh, corrugated, hollow, flat, and shaped sheet metal parts.
- Automation Options: Supports manual tool change with online compensation and automatic tool change solutions.
- Smart Production: Integrated robotic arm control with no secondary programming for seamless workpiece switching.

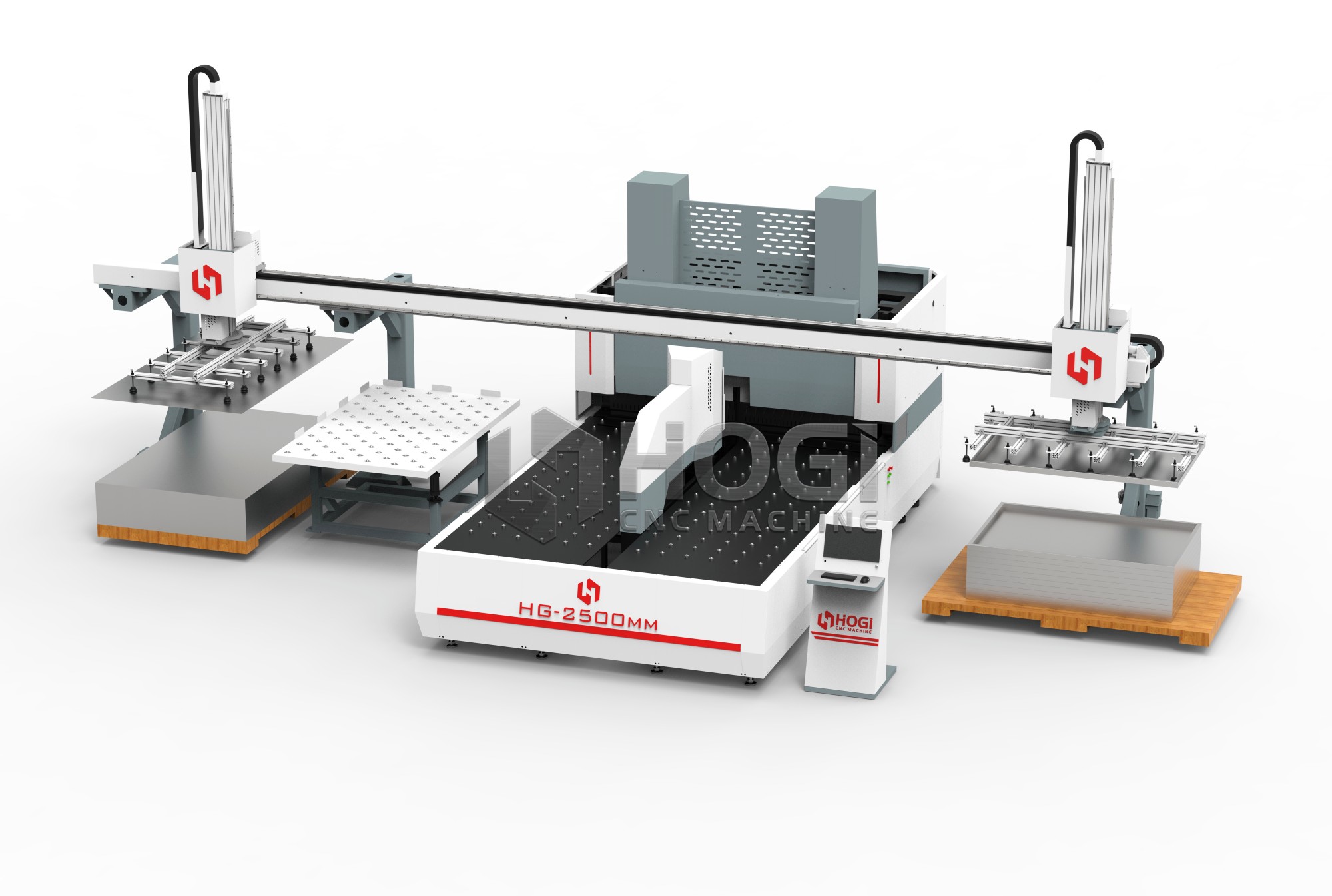

- Customizable Line Solutions: Available with single-arm, double-arm, and truss loading and unloading configurations.
Engineered for Intelligent Bending
As shown in the video, this flexible bending center is designed for small-batch multi-variety production and automated sheet metal forming. It combines 3D simulation, intelligent control, and high-speed bending to improve efficiency and consistency.
