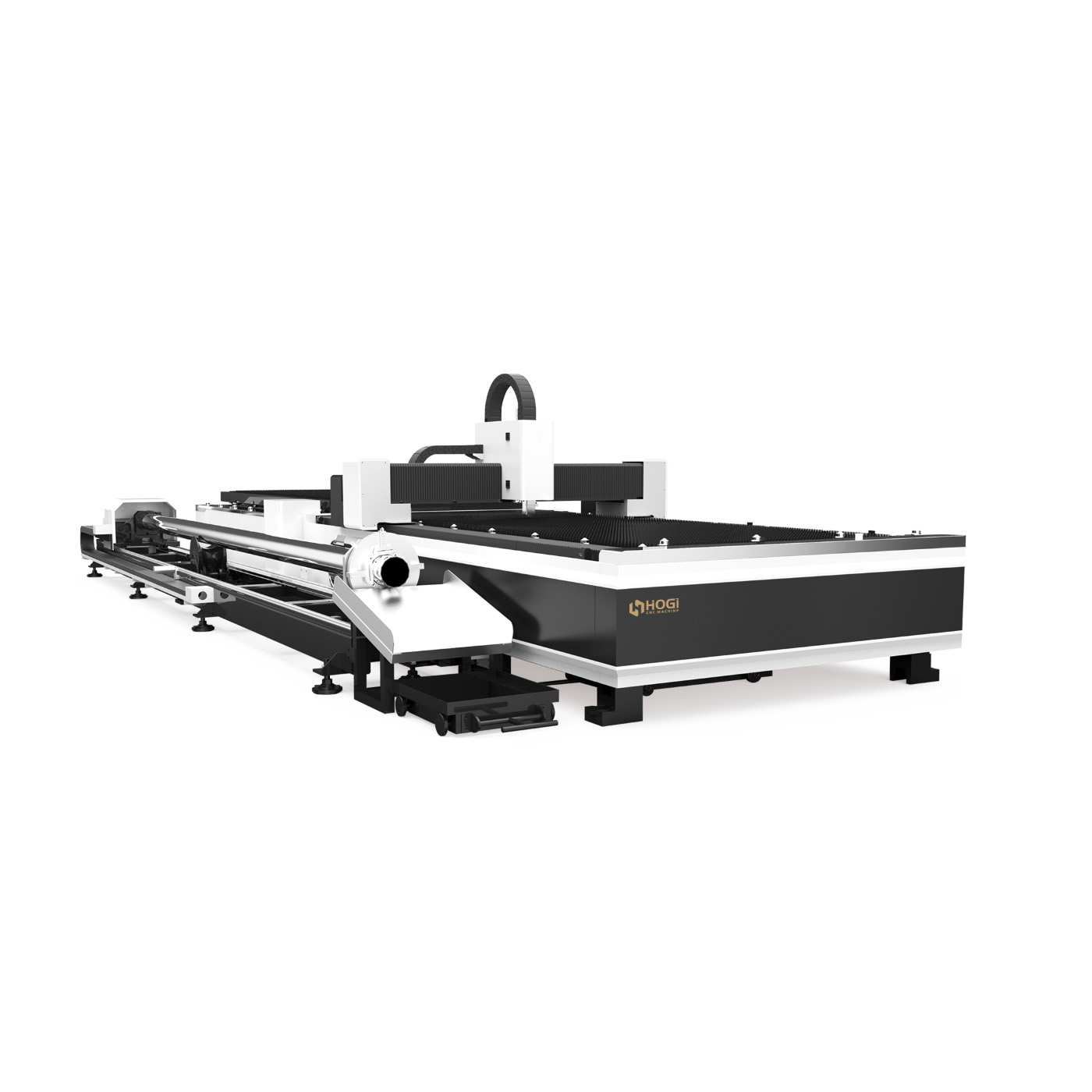

HOGI Sheet & Tube Laser Cutting machine
HOGI Sheet & Tube Laser Cutting Machine
One machine, two functions. Cut both metal sheets and tubes on a single platform — save floor space, reduce equipment investment, and double your production flexibility.
- One machine with two functions — combines metal plate laser cutter and pipe laser cutter in one integrated system
- Intelligent CNC system with professional pipe cutting software — easy to operate and maintain
- Double pneumatic chucks for secure tube gripping — supports round, square, and rectangular pipes up to 6m length
- Open structure design — convenient loading and unloading for both sheets and tubes
- Wide power range — 1kW to 6kW options, compatible with multiple laser sources (MAX, Raycus, IPG)
HOGI HGT Series Sheet & Tube Laser Cutting Machine
HOGI HGT Series single table tube and plate fiber laser cutting machine is designed for efficient processing of both metal sheets and tubes on one integrated platform. This dual-function solution helps manufacturers save valuable floor space, reduce equipment investment, and improve production flexibility for modern metal fabrication workshops. The machine supports sheet cutting, tube cutting, and customized production requirements in one complete system.
The HGT series combines a metal plate laser cutter and pipe laser cutter in a single machine. With double pneumatic chucks for secure tube gripping, an intelligent CNC system with professional pipe cutting software, and an open structure design for convenient loading and unloading, this machine delivers powerful cutting ability and high efficiency. World-class components such as precision guide rails and racks guarantee long-term cutting accuracy, while the integrated large air volume dust removal system keeps the working environment clean and safe.
Main Machine Gallery
Technical Advantages of HOGI Sheet & Tube Laser Technology
One Machine for Two Purposes: Double-use function saves both cost and space. It can process metal sheets and various metal tubes on the same platform, greatly improving work efficiency and equipment utilization.
Strong & Stable Machine Bed: The rigid steel bed construction ensures the machine maintains long-term stability without distortion, even under heavy-duty continuous operation.
World-Class Precision Components: High-end guide rails and racks from premium suppliers guarantee cutting accuracy and ensure stable, reliable operation over years of service.
Intelligent CNC Pipe Cutting System: Professional pipe cutting CNC system is easy to operate and maintain, with intuitive programming for complex tube profiles including round, square, and rectangular sections.
Integrated Dust Removal & Imported Accessories: Large air volume dust removal system keeps the workspace clean. Imported high-end accessories provide powerful cutting ability, high efficiency, and stable long-term operation.
Case Studies
Customer Testimonials
“The exchange table design improved our productivity significantly. While one sheet cuts, we’re unloading and loading the next — reduced waiting time between cycles by 60%.” — Factory Manager, Canada
“Cutting accuracy is stable, and the machine is easy to operate for daily production. We use it for both sheet and tube work, and it fits our workshop needs perfectly.” — Production Supervisor, Vietnam
“The double pneumatic chucks grip tubes securely without marking. We cut 6m stainless steel tubes for handrails — perfect ends, zero deformation.” — Fabrication Engineer, UK
Frequently Asked Questions
What materials can this machine cut?
What are the available model sizes?
What is the cutting accuracy?
What tube sizes can be processed?
Can the machine be customized?
Why Choose HOGI Sheet & Tube Laser Solutions
HOGI focuses on intelligent laser cutting solutions with strong manufacturing capability and practical production line experience. Our HGT series single table tube and plate fiber laser cutting machines are built to support stable, efficient, and precise industrial cutting applications for manufacturers that need multi-purpose production capability.
With a robust steel bed, world-class guide rails and racks, intelligent CNC pipe cutting system, and integrated dust removal, HOGI delivers equipment that saves floor space, reduces equipment investment, and improves production flexibility. Laser power options from 1kW to 6kW, compatible with MAX, Raycus, and IPG laser sources.
Whether you need a compact 1530 model for small workshops or a large 2060 model for high-volume production, HOGI provides comprehensive technical support, installation, operator training, and spare parts services.
Technical Support & Services
Professional on-site setup, calibration, and test cutting for both sheet and tube operations.
Comprehensive training on dual-function operation, CNC programming, and maintenance.
Support for MAX, Raycus, IPG — integration, calibration, and spare parts supply.
Double pneumatic chuck calibration, tube support roller maintenance, and alignment services.
Comprehensive warranty on laser source, machine structure, cutting head, and CNC control system.
Request a Quote
HOGI Sheet & Tube Laser Cutting Machine Manufacturer
Core Benefits
- One Machine Two Purposes: Double-use function saves both cost and space. Process metal sheets and various metal tubes, greatly improving work efficiency.
- High Precision Cutting: World-class components like guide rails and racks guarantee cutting accuracy with positioning accuracy ±0.03mm and repositioning accuracy ±0.02mm.
- Durable Steel Bed: Strong steel bed keeps the machine for many years without distortion with imported high-end accessories for powerful cutting ability.
Technical Specifications
Model Range: HOGI HGT Series Single Table Tube & Plate Fiber Laser Cutting Machine includesHG-1530T, HG-1560T, HG-2060T with 3m/6m tube options. FLT-Series available with 6m tube. HGL3015T model with exchange platform tube and plate cutting with rocker arm.
| Working area: | 1515×3030mm to 2020×6050mm |
| Worktable bearing capacity: | 800kg to 2000kg |
| Laser power: | 1kW–6kW (multiple options) |
| Max pipe length: | 3m/6m |
| Pipe section shape: | Round/square/rectangular |
Professional CNC Pipe Cutting System: The professional CNC pipe cutting system is easy and simple to operate and maintain. Integrated large air volume dust removal system keeps the working environment clean. Max acceleration 1.5G with max running speed 140m/min for efficient cutting.
Available Standard Model Range
HGT Series Model Specifications
| Model | HG-1530T | HG-1560T | HG-2060T |
| Working area (mm) | 1515×3030 | 1515×6050 | 2020×6050 |
| Worktable bearing capacity | 800kg | 1500kg | 2000kg |
| Positioning accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| Pipe section shape | Round/square/rectangular | Round/square/rectangular | Round/square/rectangular |
| Max. length of pipe | 3m/6m | 3m/6m | 3m/6m |
| Laser power | 1kW–6kW | 1kW–6kW | 1kW–6kW |
| Laser source | Multiple options | Multiple options | Multiple options |
| Max. acceleration | 1.5G | 1.5G | 1.5G |
| Max. running speed | 140m/min | 140m/min | 140m/min |
HGL3015T Product Parameters
| Sheet & Tube Laser Cutting Machine | ||
| Model | HGL3015T | |
| Pipe processing length | 6000mm | |
| Chuck clamping range | 15-225/230mm | |
| Pipe Max acceleration | 1G | |
| Pipe Max operating speed | 100m/min | |
| Pipe Max speed of chuck | 100RPM | |
| Plate processing format | 3050×1510mm | |
| Plate Max operating speed | 140m/min | |
| Plate Max acceleration | 1.5G | |
| Plate Positioning accuracy | ±0.03mm/m | |
| Plate Repeatability | ±0.02mm/m | |
| Other dimensions can be customized | ||
1. One Machine Two Purposes
Double-use function saves both cost and space. It can not only process metal sheets, but also various metal tubes, which greatly improves the work efficiency. Handle round, square, and rectangular pipe sections with chuck clamping range 15-225/230mm.
2. Strong Steel Bed Construction
The strong steel bed keeps the machine for many years without distortion. Worktable bearing capacity from 800kg to 2000kg depending on model, ensuring stable operation during high-speed cutting processes.
3. World-Class Components
World-class components like guide rails and racks guarantee the cutting accuracy. Imported high-end accessories provide users with powerful cutting ability and efficiency, ensuring high-precision and stable operation of the machine.
4. Professional CNC System
The professional CNC pipe cutting system is easy and simple to operate and maintain. Integrated large air volume dust removal system maintains clean working environment. Other dimensions can be customized to meet specific production requirements.
HOGI Sheet & Tube Laser Cutting Machine
Tube & Plate Fiber Laser Cutting Machine
Key Features and Functions
Auto Focus Laser Cutting Head
3KW Fiber Laser Cutting Tube & Sheet
Product Series Options
- HGT Series Single Table: HG-1530T, HG-1560T, HG-2060T with 3m tube option.
- Exchange Platform with Rocker Arm: Double-use tube and plate cutting with automatic platform exchange.
- FLT-Series with 6m Tube: Extended tube length capacity for longer pipe processing.
- 3m Tube Option: Standard configuration for most production requirements.
- Customizable Dimensions: Other dimensions can be customized to meet specific production requirements.
Technical Support and Comprehensive After-Sales Service
- Professional Engineering Team: We maintain a dedicated after-sales service team comprising engineers who have undergone rigorous systematic training and possess extensive experience in equipment repair and service.
- Rapid Response: Upon receiving a request from a customer, our after-sales service team responds immediately and, based on the nature of the fault, dispatches an engineer to provide remote assistance.
- Genuine Parts: We guarantee the supply of genuine manufacturer parts to ensure the quality and optimal performance of all equipment repairs.
- Equipment Training: We provide comprehensive training on equipment operation and maintenance, enabling customers to operate the machinery proficiently and to promptly identify and resolve technical faults.
- Equipment Upgrades: Tailored to customer requirements, we offer equipment upgrade services, including both hardware and software enhancements, to ensure that our solutions continue to meet our customers’ evolving needs.
HOGI Sheet & Tube Laser Cutting Machine In Action
Live Demonstration Highlights
Watch our HGT Series & FLT-Series Single Table Tube & Plate Fiber Laser Cutting Machine (HG-1530T / HG-1560T / HG-2060T / HGL3015T) in action. This video showcases the one machine for two purposes double-use function that saves cost and space, processing both metal sheets and various metal tubes (round/square/rectangular) with 3m/6m tube length, 1-6kW laser power, positioning accuracy ±0.03mm, and max running speed 140m/min for highly efficient sheet and tube fabrication.
- One Machine Two Purposes – Sheet & Tube Dual Processing: Experience the double-use function that greatly improves work efficiency. The machine processes metal plates (1515×3030mm to 2020×6050mm working area) and metal tubes simultaneously. Chuck clamping range 15-225/230mm, pipe processing length 6000mm, with exchange platform tube and plate cutting system featuring rocker arm for seamless transition between sheet and tube operations.
- Strong Steel Bed & World-Class Components: Watch the robust steel bed construction that keeps the machine for many years without distortion. World-class guide rails and racks guarantee cutting accuracy with positioning precision ±0.03mm and repositioning accuracy ±0.02mm. Maximum acceleration 1.5G (plate) / 1G (tube), ensuring high-speed precision cutting.
- Professional CNC Pipe Cutting System: See the integrated professional CNC pipe cutting system that is easy and simple to operate and maintain. Max chuck speed 100RPM, max tube operating speed 100m/min for tubes, with integrated large air volume dust removal system for clean working environment. Imported high-end accessories provide powerful cutting ability and efficiency.
- Multiple Model Options & Customization: Crisp visualization of three HGT models: HG-1530T (1515×3030mm, 800kg bearing), HG-1560T (1515×6050mm, 1500kg bearing), HG-2060T (2020×6050mm, 2000kg bearing). HGL3015T model with 3050×1510mm plate format. Multiple laser options (1kW-6kW), round/square/rectangular pipe sections, and customizable dimensions for specific application requirements.
Engineered for Sheet Metal & Tubular Fabrication
As demonstrated in the video, this specialized solution is optimized for dual-purpose processing of metal sheets and various metal tubes including round, square, and rectangular pipes. Widely used by global manufacturers for furniture frames, automotive parts, architectural structures, industrial equipment frames, sports equipment, bicycle frames, storage racks, conveyor systems, pipe fittings, structural tubes, sheet metal components, and custom fabrication requiring both plate and tube cutting capabilities. The exchange platform with rocker arm and integrated dust removal system ensures efficient, clean operation with high-precision and stable machine performance for years of reliable service.
