HOGI Straight seam welder
HOGI Lifting Straight Seam Welding Machine HGW-1500MM 2000MM
Horizontal lifting straight seam automatic welding machine is a high-quality, efficient, no deformation to complete the wall thickness of 0.6mm a 5mm cylinder, flat plate or open at one end of the square box butt joint longitudinal seam welding of general automatic welding equipment.
It can be used for high-quality welding of carbon steel, cold galvanized, stainless steel, and other materials, and can be selected as a set of argon arc welding (with or without wire), fused electrode gas TIG welding power source, and longitudinal seam automatic welding system. Spindle one-piece processing, built-in copper bar, split all-copper pressure plate.
The main beam up and down electric ascending price, suitable for pipe fittings size adjustment, reduce manpower, improve the speed of loading, double linear guide rail slider, load-bearing capacity is stronger; torch lifting using pneumatic ascending price, truss lifting using electric lifting, the host control system adopts PLC control, running and working stably, high reliability and performance.

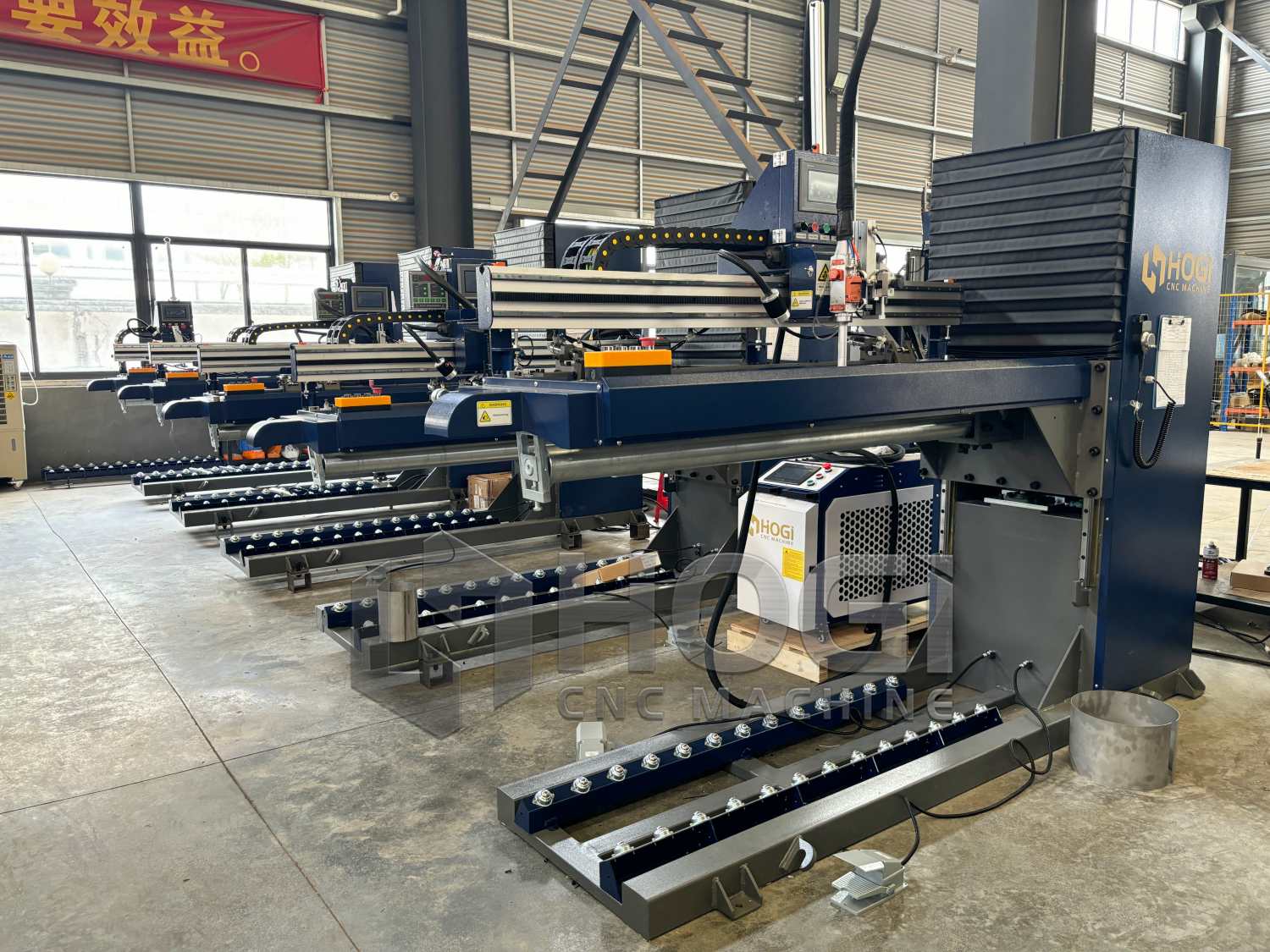

HOGI Lifting Type Automatic Straight Seam Welding Machine

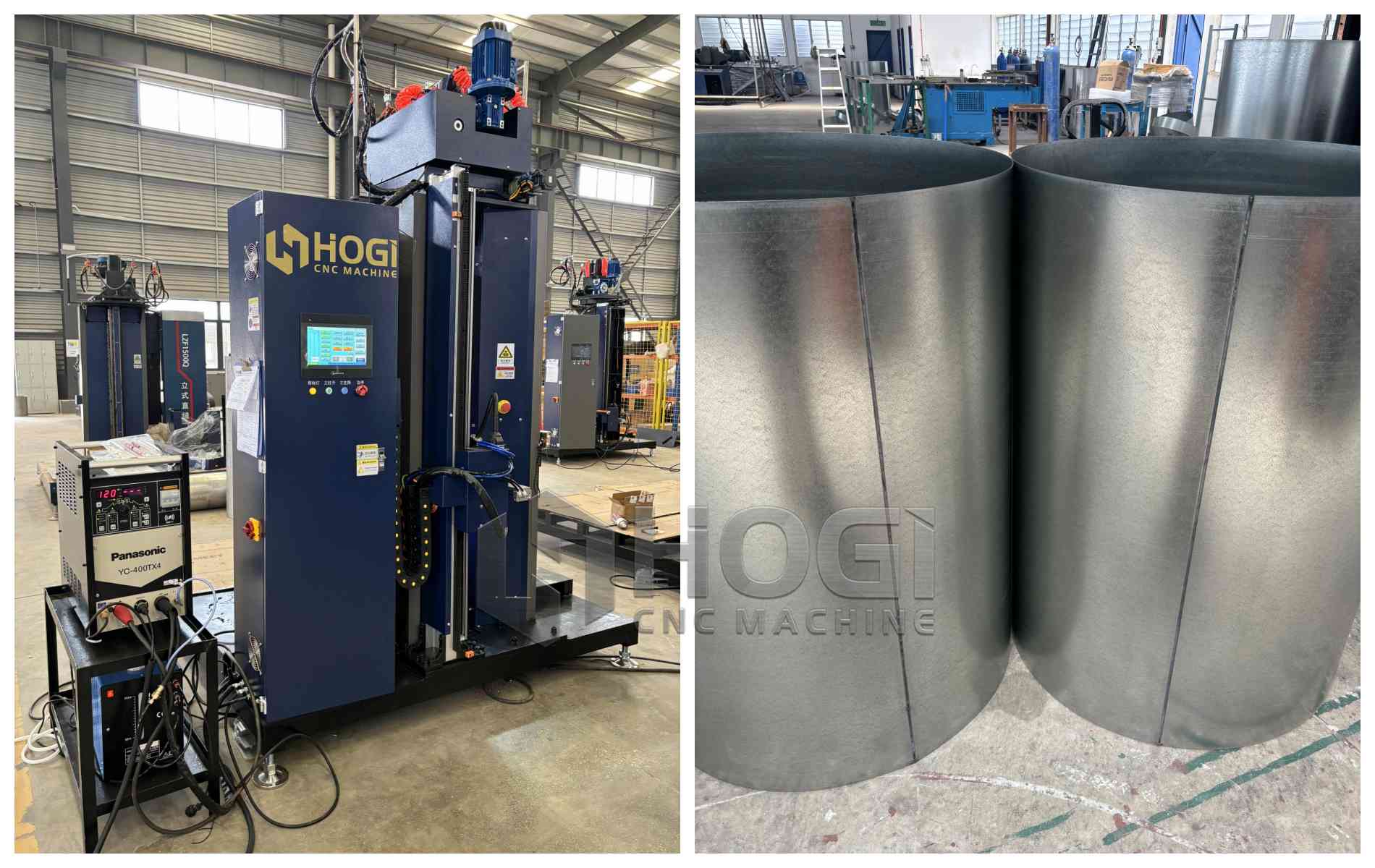

HOGI Longitudinal Seam Welding machine with TIG Laser MIG Welder.
HOGI HGW-1500 Lifting type straight seam automatic welding machine technical solution
HOGI Horizontal lifting straight seam automatic welding machine is a kind of universal automatic welding equipment with high quality, high efficiency and no deformation to complete the longitudinal seam welding of butt joints of cylindrical body with wall thickness of 0.6mm- 5mm, flat plate or square box with opening at one end.
It can be used for high-quality welding of carbon steel, cold galvanized, stainless steel, and other materials, and can be selected as a set of argon arc welding (with or without wire), fused electrode gas TIG welding power source, and longitudinal seam automatic welding system.
Spindle one-piece processing, built-in copper bar, split all-copper pressure plate. The main beam up and down motorized ascending price, suitable for pipe fittings size adjustment, reduce manpower, improve loading speed, double linear guide slider, stronger load bearing capacity;
Welding gun lifting and lowering adopts pneumatic lifting, truss lifting and lowering adopts electric lifting, the host control system adopts PLC control, running and working stably, high reliability performance;
Description of the structure.
The structure of the equipment is mainly composed of divided into:
1. Column base part
2.Cantilever lifting part
3. Torch beam section
4. Pneumatic inverted head section
5. Man-machine control section
6.Spindle part
7. Positioning mechanism part
8. Welding control system part etc.
Optional TIG MIG MAG LASER Welder
Mechanism Description:
Lifting mechanism high power motor, sufficient power
Moving parts for wear-resistant silk rod, high service life;
Taiwan linear guide, quality assurance
Movement parts are covered by sheet metal or cover, good security.
Main parameters of the equipment
