I. Advantages
1. High Efficiency and High Precision
Handheld laser welding machine adopts high energy laser beam to irradiate the workpiece, rapidly melting and cooling the material, thus realizing high efficiency and high precision welding effect. Compared with the traditional welding method, the handheld laser welding machine can greatly improve the welding speed and precision, compared with the traditional welding method can improve the welding efficiency by 3-6 times, and at the same time reduce the thermal deformation and heat-affected zone, optimize the welding quality.
2. Wide range of application
handheld laser welding machine can be applied to a variety of materials, such as stainless steel, carbon steel, aluminum alloy welding. This welding technology is suitable for workpieces of various shapes and sizes, and can be used for welding operations in different environments, with a wide range of applications.
3. Low deformation, low heat impact
Due to the concentration of heat and fast speed in the laser welding process, the heat-affected zone and thermal deformation are small, and it is not easy to cause deformation of the workpiece. This makes the handheld laser welding machine in thin plate welding, precision parts processing has obvious advantages, can effectively ensure the dimensional accuracy and appearance of the workpiece quality.
4. Easy to realize automation
handheld laser welding machine has the characteristics of automation control and intelligence, and can be operated by robots and other automation equipment. This can not only improve welding efficiency and reduce manual intervention, but also reduce labor intensity and improve production safety and stability.
5. Environmental protection and energy saving
Compared with the traditional welding method, the energy consumption of the handheld laser welding machine is lower, and the laser welding process does not produce fumes and harmful gases, which is conducive to environmental protection and energy saving.
6. Safety Risks
Although traditional welding machines are safe under normal circumstances, there are still safety risks of radiation and dust during use. While the laser welding machine is a high-energy beam processing equipment, the work of the laser beam energy is highly concentrated, the main role of rapid heating of metal materials to achieve welding. In this process, the laser beam energy will be concentrated in the welding area without causing radiation and pollution to the surrounding environment and personnel.
II. Disadvantages
1. High cost, high maintenance
Handheld laser welding machine as a high-end welding equipment, its purchase cost is high. In addition, the protective lens of the handheld welding gun has a limited service life and needs to be replaced regularly, which increases the cost of use.
2. Limitations
Although handheld laser welding machines are suitable for welding a wide range of materials, there are still limitations in some special cases. For example, for some highly reflective materials (such as copper, galvanized materials, etc.), laser welding is more difficult and requires special treatment or other welding methods. In addition, for some workpieces with a thickness greater than 8mm, the operation of the handheld laser welding machine may be limited.
In recent years, with the significant advantages of high precision, high speed, and small thermal deformation, laser handheld welding is gradually replacing the traditional welding process. Industry data show that in 2024 the global handheld laser welding machine market size has reached about 876 million U.S. dollars, sales of about 160,000 units. In the recently held Essen Welding Exhibition, laser companies launched the handheld welding program, air-cooled program accounted for the mainstream position. Since the world’s first air-cooled handheld welding equipment was introduced in 2021, its market share has soared 300% in just three years.
It is widely recognized that air-cooled solutions have become the optimal choice over water-cooled and refrigerant solutions for power segments below 1,500 W. So, initially positioned as a replacement for the traditional welding process of laser handheld welding, why can get the traditional welding manufacturer’s favor? How can air-cooled handheld welding become a mainstream solution? Next, this article will be combined with the on-site experience of the Essen exhibition, one by one to explore these issues.
Behind the prosperity of handheld laser welding
In this Essen welding exhibition, a number of welding equipment manufacturers focused on displaying a variety of air-cooled handheld laser welding products. With easy operation, excellent weld quality, low cost, green and other outstanding advantages, laser handheld welding can effectively solve the application of many traditional welding scenarios pain points, showing a strong potential for application.
As we all know, the fish scale pattern welding laminated weld due to high sealing, tensile strength and over the flaw detection ability, become the main standard of shipbuilding and other fields. The traditional welding process to form a regular fish scale pattern, the welder’s technical requirements are extremely high, relying on experience and parameters easily lead to inconsistent welds, difficult to meet the high-volume standardized production, and there is a lack of fineness of the problem, the laser welding is therefore the formation of alternative advantages. However, the subsequent emergence of water-cooled laser handheld welding still exists machine bulky, poor portability and other pain points.
In fact, more than 80% of the current market handheld laser welding machine quality issues stemming from the welding gun. The traditional welding gun complex structure, optical path is fragile, bulky and inconvenient to operate, the scope of application is narrowed to argon arc welding, limiting the popularity of handheld laser welding. The welding gun integrates the optical system, gas system and other core components, its lightweight development is facing the “pull one hair and affect the whole body” of the problem, is the key obstacle to promote the lightweight enterprise.
For the above pain points, double pendulum handheld welding HOGI laser in this Essen welding exhibition debut “modular lightweight intelligent” 1600 WHOGI air-cooled fish scale welding handheld welding machine gives the answer.
HOGI Laser Multi-Innovation Air-cooled Handheld Welding
HOGI Laser has realized the independent research and development capability of the whole industry chain of air-cooled laser welding machine from the core components to the whole system. Now, as the pioneer of air-cooled fish scale welding technology, HOGI Laser has once again successfully defined and led the development trend of this new direction in China.

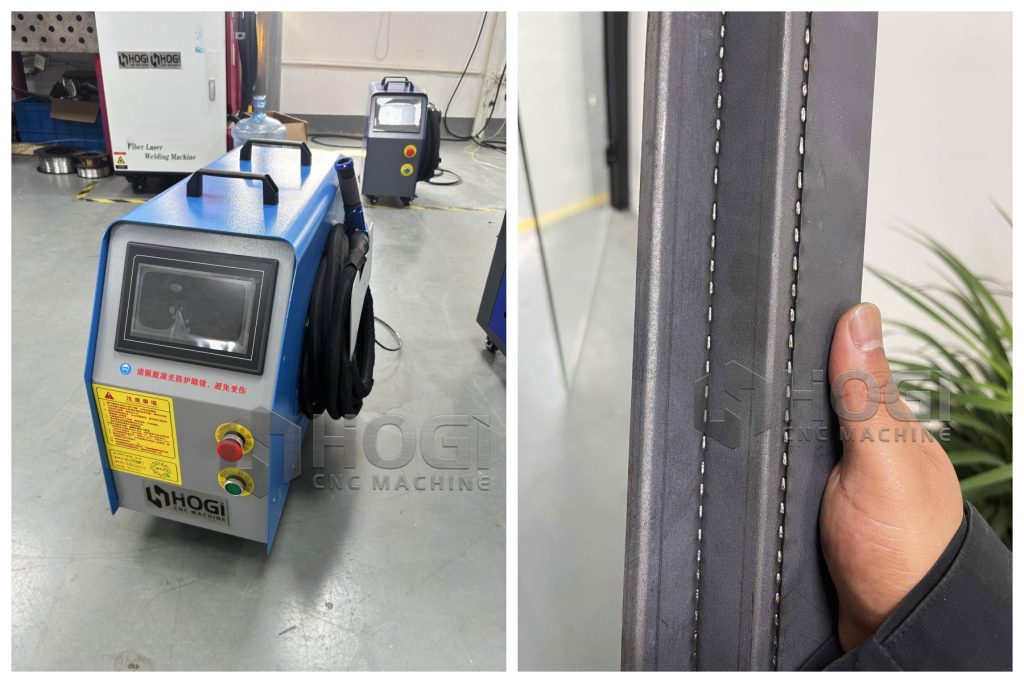

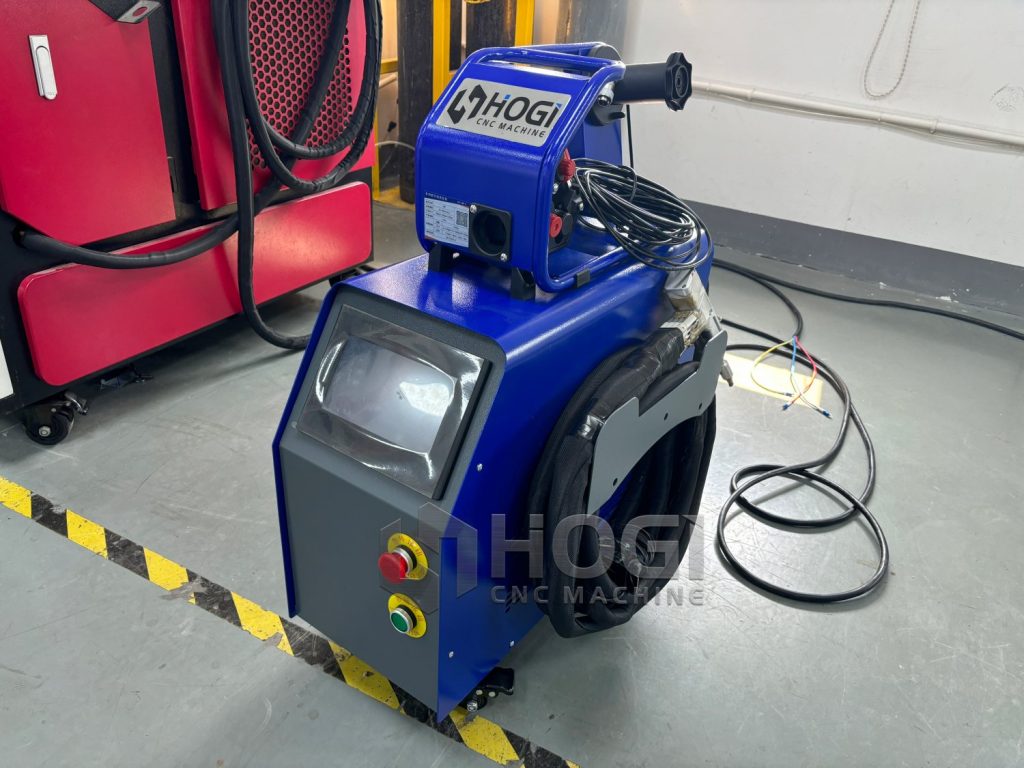

HOGI Laser’s 1600 W air-cooled fish scale welding machine is a handheld laser welding machine that integrates a pure air-cooled solution x fish scale pattern welding. Among them, the core composition of the equipment includes a full closed-loop welding control system, constant current power supply, air-cooled laser and self-feedback welding gun, the weight of the whole machine ≤ 30 kg, the welding gun weighs only 0.6 kg, can realize 7 × 24 hours without light cuts, no shutdown faults of continuous and stable operation, and the maximum melting depth of 4 mm.
Specifically, as the core light source of the equipment, the air-cooled laser has an output power of up to 1600 W, and after the Scientific distributed arrangement, combined with 44 copper intelligent cooling system and frequency conversion fan, has a higher than the previous product 5 times the cooling capacity, even in the -40 ℃ to 45 ℃ extreme environment can still continue to run, can be done 7 × 24 hours without stopping, and significantly improve the welding efficiency, and the whole machine noise control in the 60 dB or less, a complete solution to the traditional noise of air-cooled equipment, the pain point.
In terms of control system, hogi2000 W air-cooled fish scale welding machine is equipped with a full closed-loop welding system, which realizes fault prediction through multi-dimensional real-time monitoring and active diagnostic mechanism. The system has a built-in high-precision temperature control module that can dynamically track the status of key components, which can reduce the equipment failure rate and after-sales maintenance costs, while improving production efficiency. In addition, the system has a built-in process parameter package, which can automatically generate welding parameters by selecting the material type and thickness, truly realizing the zero-threshold operation of “1 minute to get started”.
In the welding process, hogi 2000w air-cooled fish scale welding machine is a core highlight, is able to easily weld a master fish scale welding seam. It is equipped with a laser dual-axis oscillating handheld welding gun, which adopts advanced laser technology to realize high-precision and high-efficiency welding operations. Welding process heat-affected zone is small, the weld is beautifully shaped, firm and reliable, welding quality is excellent, the novice only need to set the thickness of the material, simple operation can be completed in one fell swoop.
In the lightweight welding torch for the current market pain points for technical research, its latest welding torch selection of high-strength, low-density materials to reduce weight and enhance anti-interference. Systematic optimization design in the structure to ensure the strength and stability of the welding torch. At the same time, the use of non-slip structure and the optimization of the center of gravity to make the grip more stable, welders continuous operation without fatigue.
HOGI’s world premiere 1200W2000W air-cooled fish scale welding machine accelerates the substitution of laser welding for traditional welding process through technological breakthroughs in modularization, lightweighting, and intelligence, and the formation of a closed loop with the logic of process standardization, high efficiency in heat dissipation, and operation and maintenance predetermination.
Back to the original question, as an indispensable emerging technology in the field of welding, laser handheld welding effectively make up for some of the shortcomings of the traditional process, enhance the user experience, and therefore won the recognition of traditional welding manufacturers. Focus on the laser handheld welding system, the in-depth development of miniaturization technology, the handheld welding equipment manufacturers of structural design capabilities to put forward higher requirements, the difficulty lies in how to make the laser volume is small at the same time, to ensure stable performance, which is the air-cooled to become one of the mainstream program.
At present, despite the broad prospects for the handheld laser welding market, but still facing multiple technical bottlenecks. Therefore, breakthrough technology boundaries, continue to expand the application scenarios, is the core direction of the industry’s future development. For enterprises, continuously improve product quality and reliability, and jointly promote technological progress, is the key path to lead the welding industry in the future.
