HOGI Metal Pipe Flanging machine ⁠industrial fan flanging machine

HOGI pipe flanging machine is a specialized piece of industrial metal-forming equipment used to bend, flare, or roll the end of a pipe outward to create a 90-degree collar or flange directly from the pipe material itself.
By mechanically creating a built-in flange (often called a Van Stone or loose flange connection), these machines allow operators to use loose backup flanges for bolt-up without the need for expensive, time-consuming weld-neck flanges.

Flanging machines in the ventilation fan industry are designed for large-diameter, thick-walled circular or rectangular ducts and fan housings. Their primary purpose is to directly flange right-angle edges along the duct’s perimeter for connecting to flanges or for direct riveting.
🛠️ Main Categories of Ventilation Fan Flanging Machines
In the ventilation industry, based on the shape and structure of the ductwork, these machines are primarily divided into two major categories:

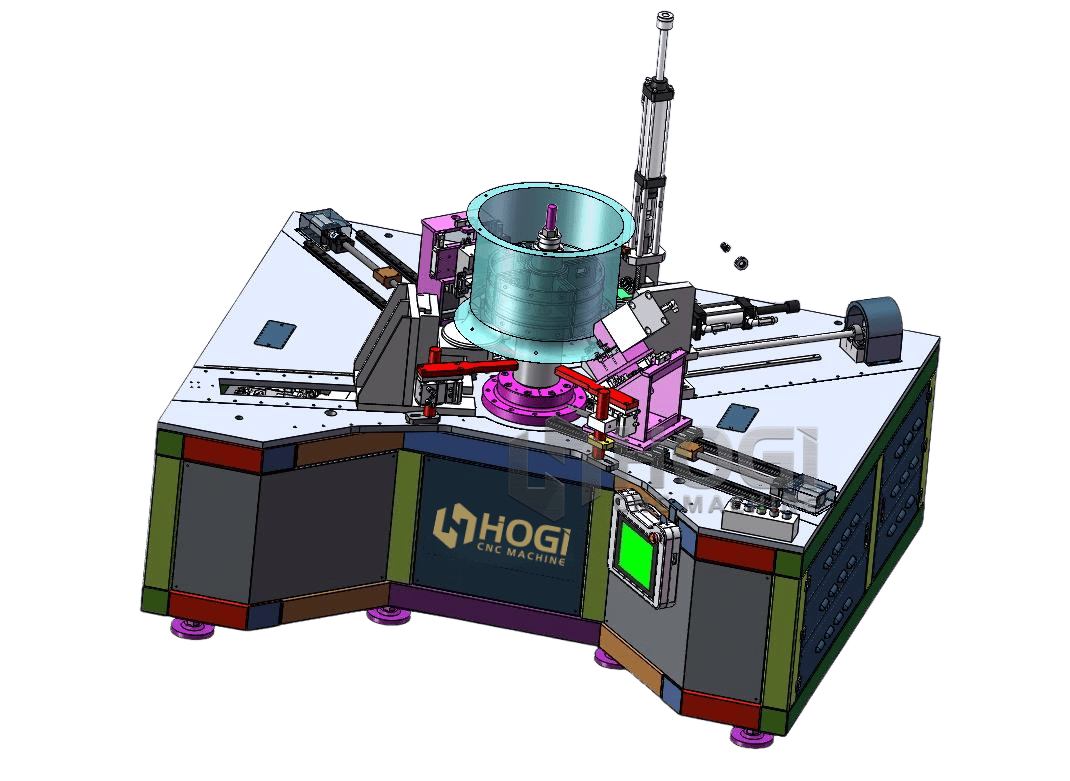

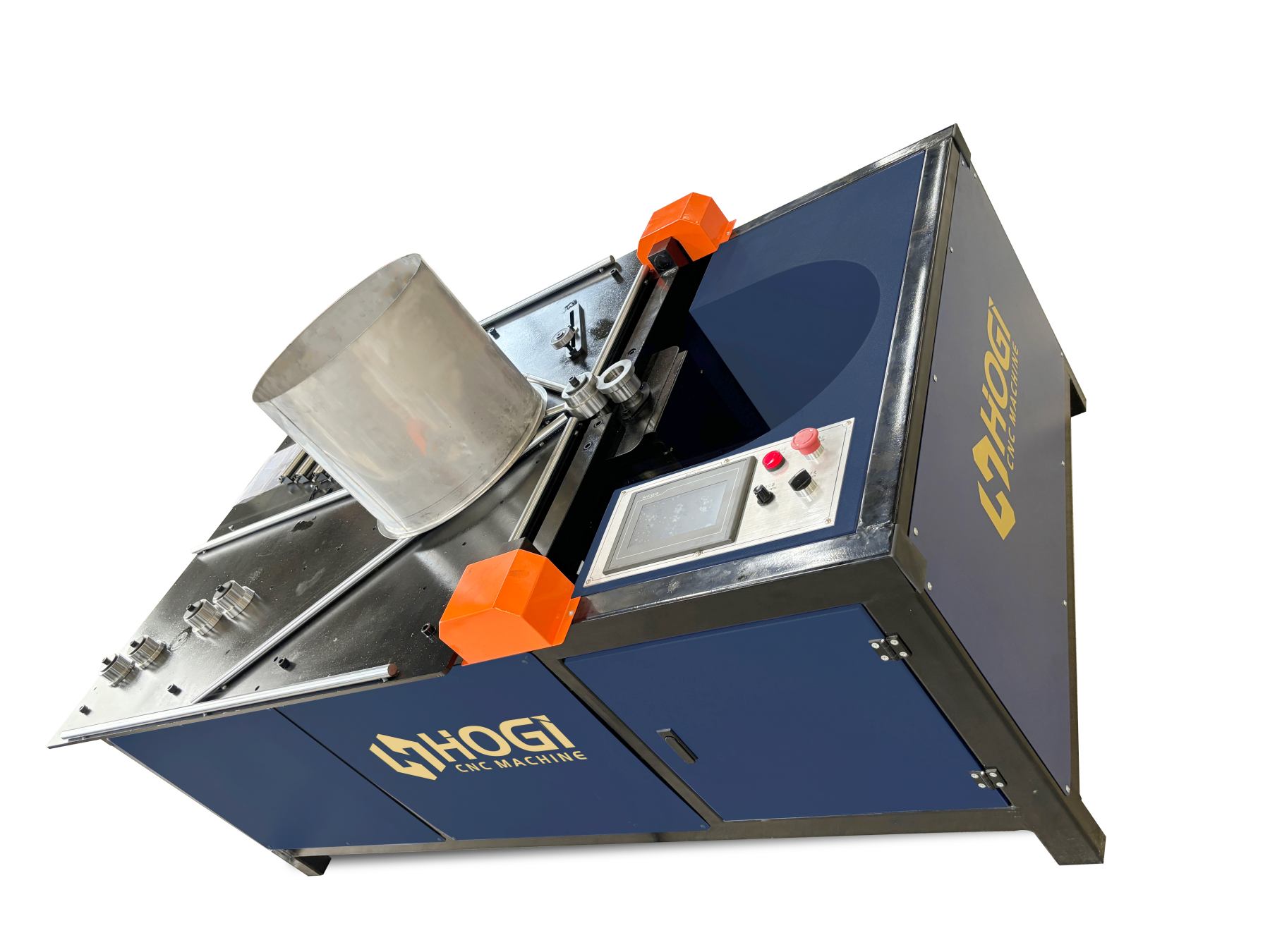

1. Flanging machines for round ducts/fan housings (most common)
Mainly used for end processing of round spiral ducts, straight-seam welded ducts, and axial fan housings.
Working Principle: The cylindrical duct is placed over the machine’s lower roller, while the upper roller, driven by a hydraulic or mechanical system, presses against the sheet metal. As the rollers rotate, the edge of the cylinder is gradually rolled outward and bent 90 degrees.

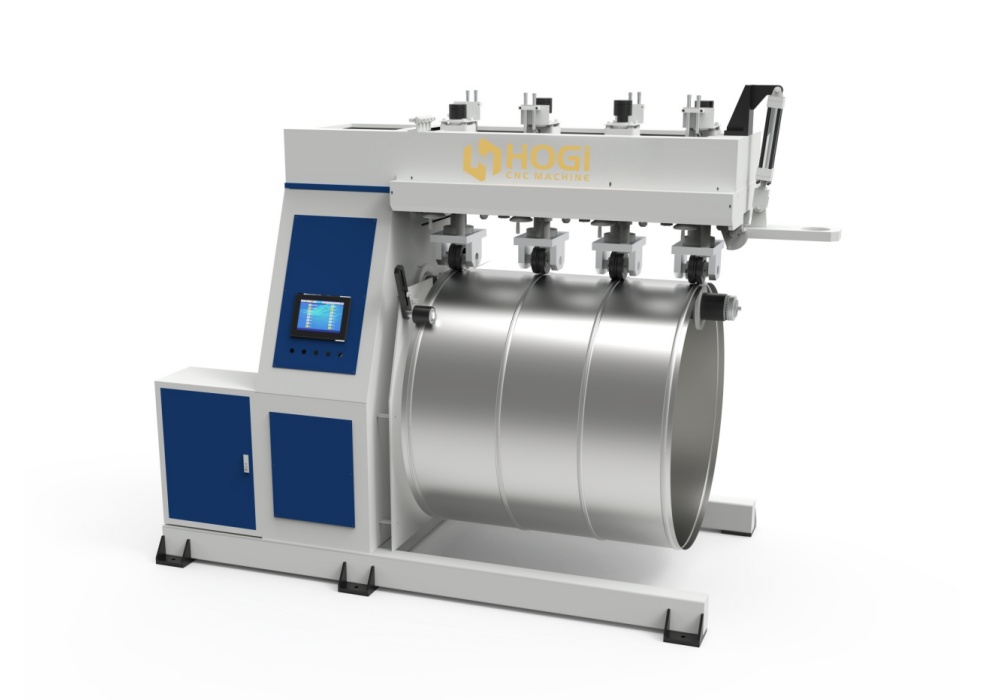

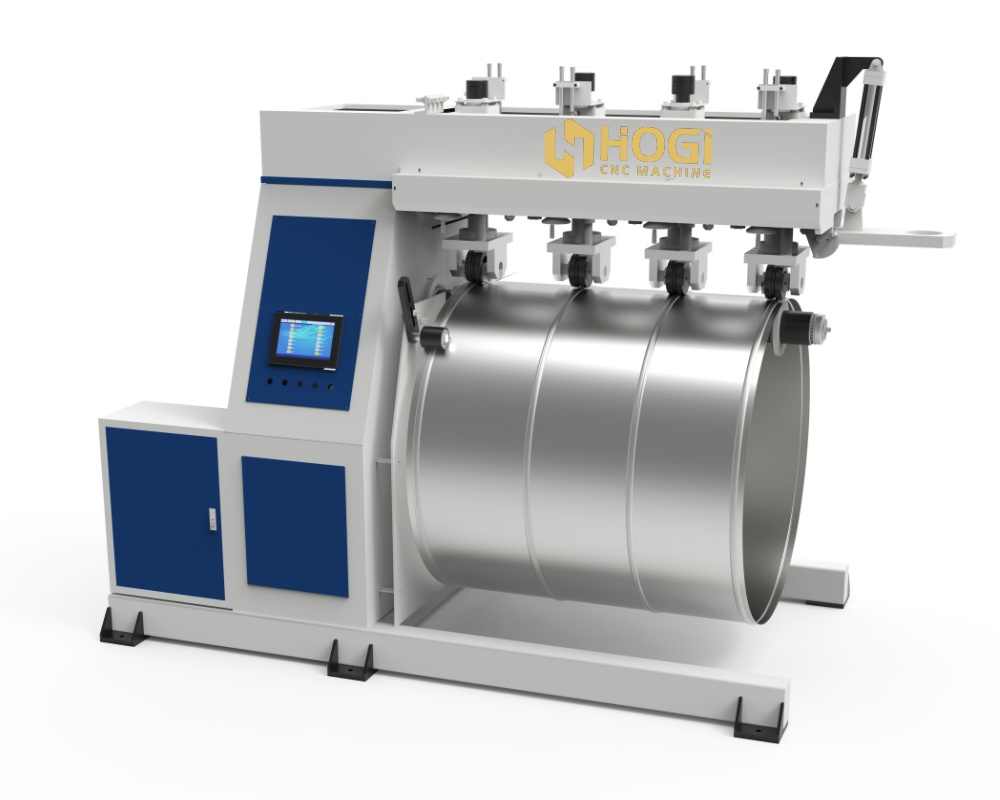

Dual Functionality: Many high-end models not only perform flanging but also simultaneously create rings or ribs to enhance the structural strength of thin-walled ducts.
2. Rectangular Duct Co-Plate Flange Flanging Machine
Used for flanging rectangular (square) ventilation ducts.
Working Principle: For rectangular ducts that have already been seamed, specialized tracks or rollers are used to fold all four edges outward to form 90-degree straight edges. This machine is typically used in conjunction with the co-plate flange (TDF/TDC) process to secure the flange into the corner brackets.
