In mixed-size HVAC duct production, lost time often occurs between batches rather than during rolling. Searching for the correct program, checking incoming blanks, preparing supports and waiting for first-piece approval can keep the next order from starting.

A repeatable plate rolling machine changeover process helps organize these tasks without rushing inspection or bypassing safety requirements. The objective is to move from the last accepted part of one batch to stable production of the next batch with clear setup records and fewer avoidable adjustments.

This guide focuses on changeover planning, CNC program management and first-piece release. For equipment configurations, visit the HOGI CNC 4 roller rolling machine and rolling-welding equipment page.

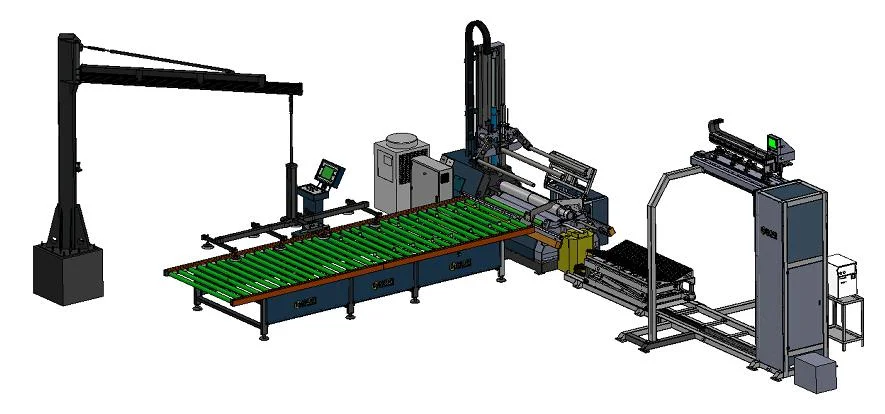

hogi cnc rolling machine
seam laser welding machine

Why Mixed-Size Duct Production Needs a Changeover Standard

Diameter, Length and Thickness Changes Affect the Setup

A change in duct diameter is not simply a change to one number on the screen. The next job may also require different blank dimensions, forming conditions, workpiece supports, transfer arrangements and welding fixtures.

Longer or more flexible shells can introduce handling requirements that do not exist on the previous batch. Changes in thickness or material may require a separately approved rolling recipe and renewed first-piece verification.

Define the complete setup for each product family rather than treating the CNC program as the entire process.

Material and Surface Requirements Also Matter

Confirm the material grade, actual thickness and surface requirements before releasing blanks to the machine. Two jobs with similar dimensions may still have different forming behavior or handling requirements.

For stainless steel or appearance-sensitive parts, the setup plan should also identify cleanliness and surface-protection requirements. Follow the approved handling procedure and avoid introducing unsuitable materials or contaminants into the work area.

Separate Changeover Losses from Normal Cycle Time

Cycle time describes repeated production under a defined setup. Changeover time covers the transition between setups.

Recording them separately helps answer two different questions: how quickly the line produces parts once running, and how much time is lost when the product changes.

For station timing and finished-part output, see our rolling and welding line cycle-time guide. Do not count the same changeover loss twice in a shift-output calculation.

Build Product Families Before Scheduling Jobs

Group Parts by Material and Thickness

Create a product-family list using conditions that genuinely affect setup. Material grade and thickness are useful starting points, but they are not the only criteria.

Grouping Factor What to Record Changeover Consideration
Material Grade, condition and batch identification. Confirm the recipe applies to the incoming material.
Thickness Specified thickness and relevant measured values. Review approved forming and downstream settings.
Diameter Target diameter and the drawing’s diameter reference. Confirm program, supports and seam fit-up requirements.
Cylinder length Finished length and blank orientation. Check machine capacity, handling and fixture access.
Surface requirements Finish, protective film and permitted marks. Prepare suitable handling and inspection conditions.
Welding and inspection Joint requirements and inspection plan. Coordinate the next setup with downstream stations.

Identify Compatible Setup Conditions

Some jobs can share handling supports or fixture arrangements, while others require a more substantial change. Record these relationships in a setup matrix.

Do not assume that similar diameters mean identical setups. The approved program, material conditions, part geometry and downstream process still need verification.

Balance Setup Efficiency Against Delivery Priorities

Grouping similar jobs may reduce repeated preparation, but delivery dates, material availability and downstream capacity remain important.

A practical schedule considers both setup effort and order commitments. Avoid producing unnecessary inventory simply to reduce the number of changeovers.

Prepare the Next Job Before the Current Batch Ends

Separate External Preparation from Stopped-Machine Work

External preparation consists of tasks that can be completed safely while the current batch continues. Internal setup consists of tasks that require the equipment to be stopped or placed in an approved setup state.

The distinction depends on the actual machine, workplace layout and operating procedure. Preparing paperwork away from the machine may be suitable during production; entering a guarded area or changing an active setup is not.

Task Preparation Category Condition
Retrieve the next drawing and work order. Potential external preparation. Use the approved document revision.
Verify incoming material and blank identification. Potential external preparation. Perform checks in a designated safe area.
Prepare measuring equipment and inspection records. Potential external preparation. Confirm suitability and required calibration status.
Retrieve the approved program reference. Potential external preparation. Do not alter the active job or controller without authorization.
Change supports or fixtures within the machine area. Stopped-machine setup. Follow the approved isolation and setup procedure.
Select and activate the next production program. Controlled setup step. Use the machine-specific procedure and verify the selection.
Produce and inspect the first piece. Trial and approval stage. Keep the batch on hold until release requirements are met.

Verify Drawings, Blanks and Material Identification

Prepare a job packet before the transition begins. It should connect the work order, drawing, material, blank dimensions and approved program reference.

Confirm that the available quantity is sufficient and that blank orientation is clear. Keep the next batch identifiable and separate from remaining material belonging to the current job.

A prepared job packet prevents operators from having to resolve basic document or material questions after the machine has stopped.

Prepare Supports, Fixtures and Inspection Tools

Stage required equipment in an approved area without blocking access, emergency routes or the current process.

Check that the next job’s supports and welding fixtures are available and suitable. Coordinate with the inspection team so first-piece approval does not become an avoidable waiting period.

Preparation must not interfere with moving equipment or expose personnel to the active production area.

Manage CNC Rolling Programs and Revisions

Create a Consistent Naming Convention

A useful program name helps identify the job but should not replace the drawing or setup record. Include enough information to distinguish material, thickness, diameter, length and revision where the controller permits.

For example:

SS304_T1p5_D600_L1250_R03

This illustrative name identifies stainless steel 304, nominal 1.5 mm thickness, a 600 mm target diameter, a 1250 mm cylinder length and revision 03. The job record must also state whether the diameter is internal, external or another defined reference.

The example is a naming method only. It is not a machine model, approved recipe or claim that these conditions are suitable for every rolling machine.

Record the Conditions Associated with an Approved Recipe

A CNC rolling program should be linked to its validated production conditions.

  • Part number and drawing revision.
  • Material grade and permitted condition.
  • Thickness and blank dimensions.
  • Target geometry and inspection requirements.
  • Machine and relevant configuration.
  • Handling and support arrangement.
  • Approved setup notes and first-piece record.

A program name alone cannot establish whether a recipe remains suitable after material, geometry or equipment conditions change.

Control Recipe Changes and Operator Access

Preserve the approved version before making an authorized trial change. Record what changed, why it changed and who approved the resulting revision.

Distinguish trial versions from production versions. Use the controller’s supported access and backup functions according to the manufacturer’s instructions.

Do not use informal file names such as “new,” “final” or “latest” as the only revision control. A clear revision number and linked approval record are easier to trace.

Use a Repeatable Changeover Checklist

Confirm the Job Before Activating the Program

Check that the drawing, blanks and selected program refer to the same part. Verify the material and dimensional requirements before starting a trial.

Do not rely on the previous operator’s setup or the last program displayed on the screen.

Review Setup and Clearance Conditions

Confirm the approved support arrangement, workpiece movement, unloading route and downstream fixture requirements.

Any mechanical adjustment, maintenance access or work inside a hazardous area must follow the applicable machine and site procedures. Never bypass an interlock or protective function to shorten a changeover.

Coordinate Rolling, Unloading and Welding

In an integrated line, the rolling station should not release a new product until downstream operations are ready for it.

Confirm that transfer arrangements and welding setup correspond to the next cylinder. Clearly identify the last parts of the previous batch so they are not mixed with the new job.

Checklist Item Acceptance Condition Responsible Role Record
Work order and drawing Correct part and approved revision. Production coordinator / operator. Job packet.
Material and blanks Identification, dimensions and condition verified. Material preparation / operator. Material and blank checks.
CNC program Correct approved program and revision selected. Authorized operator. Program reference.
Supports and handling Arrangement matches the approved setup. Setup team / operator. Setup checklist.
Downstream readiness Transfer and welding stations are ready for the new part. Line coordinator. Line-release confirmation.
Inspection readiness Method, equipment and acceptance limits are available. Quality inspector. Inspection plan.
First-piece approval Required checks completed and batch release authorized. Designated approver. Signed first-piece record.

Adapt responsibilities to the workshop. The table provides a structure, not a replacement for a machine-specific operating procedure.

Approve the First Piece Before Batch Production

Check Diameter, Shape and Seam Alignment

Inspect the characteristics required by the drawing. These may include diameter, roundness, length, unwanted taper, seam gap and edge mismatch.

Use defined measurement locations and support conditions so the result can be compared with later parts. An average diameter alone may not reveal a shape defect.

If the first piece is unacceptable, use our guide to troubleshooting ovality, taper and seam mismatch to organize the investigation before changing the program.

Verify Handling and Welding Fit-Up

For a rolling-welding line, a shell that passes rolling inspection must also reach the welding station in an acceptable condition.

Check support during unloading, transfer orientation and fixture fit-up. Where the approved plan requires it, complete downstream first-piece checks before releasing the full production batch.

Do not treat acceptable forming dimensions as proof that welding and handling requirements have also been met.

Record Corrections and Release the Batch

If an adjustment is required, preserve the initial result and document the approved correction. Reinspect the affected characteristics before release.

First-piece release flow: Confirm job and program → Produce trial part → Inspect rolled geometry → Verify handling and fit-up → Complete required downstream checks → Record approval → Release batch production.

If a required check fails, keep the batch on hold, investigate the deviation and repeat the relevant inspection after an authorized correction.

For a broader record structure, see the plate rolling and welding acceptance test checklist.

Measure Whether Changeover Performance Is Improving

Record First-Good-Part and Stable-Production Times

Use a consistent starting point: the last good part of the previous batch. Then record two milestones for the next batch.

  • First accepted part: the first piece meeting the required checks.
  • Stable production: the point when acceptable parts are being produced at the approved operating pace.

A successful trial piece does not always mean normal production has resumed. Keeping both timestamps prevents the changeover result from hiding a long ramp-up period.

Separate Preparation, Adjustment and Waiting

Record the reason for time spent during the transition. Useful categories include document checks, material preparation, approved setup work, trial production, inspection, adjustments and waiting.

Record Field Purpose
Previous and next job identification Link the transition to product and setup conditions.
Last good part timestamp Establish the start boundary.
External preparation completed Show whether the next job was ready before stoppage.
First accepted part timestamp Measure time to first-piece approval.
Stable-production timestamp Measure the complete transition to normal output.
Trial parts and rejected parts Track setup material loss.
Waiting and adjustment reasons Identify repeatable improvement opportunities.
Program revision and approval Maintain process traceability.

Track Quality Alongside Setup Time

A shorter changeover is not an improvement if it increases rejected shells or transfers problems to welding.

Review changeover duration together with first-piece acceptance, setup scrap, repeated adjustments and early-batch defects. Compare similar transitions so differences in product complexity do not distort the result.

Illustrative Mixed-Batch Scheduling Example

The following example is hypothetical. It illustrates scheduling logic and does not claim a measured time saving or HOGI customer result.

Compare Unplanned and Family-Based Sequences

A workshop has four orders: two stainless steel duct sizes sharing a material thickness, and two carbon steel duct sizes sharing another thickness.

Sequence Illustrative Order What to Evaluate
Alternating families Stainless A → Carbon A → Stainless B → Carbon B. Repeated changes between material families and associated setup conditions.
Grouped families Stainless A → Stainless B → Carbon A → Carbon B. Whether adjacent jobs can share preparation or handling arrangements.

The grouped sequence contains fewer material-family transitions. However, diameter changes still require the correct program and first-piece checks, and the actual time benefit depends on the setup matrix.

Validate the Schedule Against Real Constraints

Before adopting the grouped sequence, check delivery commitments, material readiness, inspection capacity and welding availability.

Record actual transition times for repeated job pairs. Use those records to decide whether family-based scheduling improves good-part output without creating delays elsewhere.

Common Changeover Mistakes to Avoid

  • Selecting a program by a similar-looking file name without checking its revision.
  • Assuming nominal thickness guarantees identical material behavior.
  • Preparing inspection tools only after the trial part is complete.
  • Changing several settings without preserving the approved baseline.
  • Releasing batch production before required first-piece checks are complete.
  • Optimizing rolling setup while ignoring transfer and welding readiness.
  • Reporting the first trial piece as a completed changeover before stable production resumes.
  • Shortening setup by bypassing safeguards or skipping required checks.

If unexpected movement, a safety fault or a suspected machine defect occurs, stop and follow the manufacturer and site procedures. Changeover improvement is not a reason to perform unauthorized calibration or maintenance.

Frequently Asked Questions

Can One Rolling Program Cover Several Duct Diameters?

Some controllers support parameter-based programming, but this depends on the machine and approved process. Do not assume a stored recipe covers a new diameter without checking its scope. Use the required first-piece verification for the new job.

What Should Be Recorded When a Material Batch Changes?

Record material identification, grade, relevant thickness measurements and the program used. Link the batch to first-piece results and document any approved correction. This helps distinguish material variation from setup or handling issues.

How Is Changeover Time Different from Cycle Time?

Cycle time relates to repeated production under one setup. Changeover time measures the transition between jobs. Record both because a fast machine cycle does not compensate for frequent, poorly organized transitions.

When Should an Approved Program Be Revalidated?

Follow the quality plan when material conditions, geometry, blank dimensions, machine configuration or relevant setup conditions change. Repeated defects or maintenance affecting the process may also require renewed verification.

Does a Saved CNC Program Eliminate First-Piece Inspection?

No. A saved program reproduces defined commands, but the current material, blank and setup still need to match its approved conditions. The inspection plan determines the checks required before batch release.

Can Preparation Be Done While the Machine Is Running?

Only tasks that can be performed safely outside the active operation and without changing the current setup. Work requiring access to hazardous areas or machine adjustment must follow the approved stopped-machine procedure.

What Should a Supplier Know About High-Mix Duct Production?

Provide representative drawings, material and thickness ranges, diameter and length ranges, batch sizes, changeover frequency, handling needs and inspection requirements. This allows the proposed configuration to be assessed against the actual production mix.

Next Steps: Make Changeovers Repeatable

Start with one frequently repeated job transition. Document the current sequence, prepare suitable tasks in advance, verify the next program and use a clear first-piece release process. Measure the result before extending the method to other product families.

For shape deviations, use the plate rolling defects troubleshooting guide. For station capacity and transfer constraints, read our rolling-welding line cycle-time and bottleneck guide. For inspection records, refer to the rolling and welding acceptance checklist.

If you are evaluating a CNC 4 roller rolling machine for mixed-size duct production, review the HOGI rolling and welding equipment configurations. Send representative parts, production requirements and changeover needs to adaxu@hogimachine.com for technical consultation.
